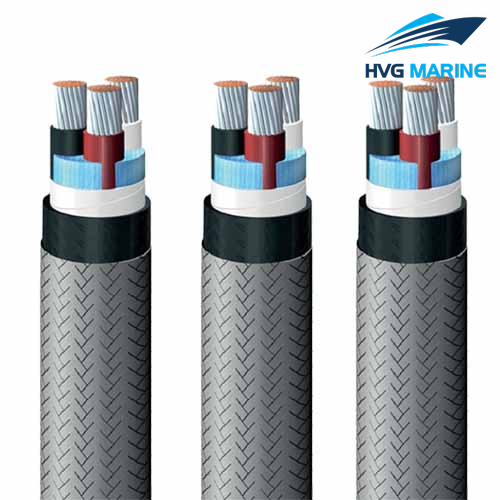

HVG MARINE CABLE 0020: FA-TPYC Shipboard Power and lighting cable 0.6/1kV

Applications

For fixed installations on ships and offshore-units in all locations.
Flame-Retardant,Three core,EP rubber insulated,PVC sheathed,Steel wire braid Shipboard Power cable.

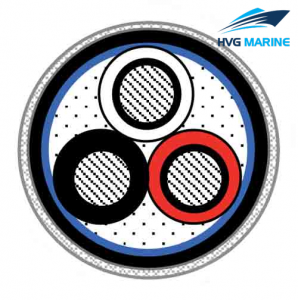

FA-TPYC Shipboard Power and lighting cable 0.6/1kV Construction:

1.Conductor:Tinned Annealed Stranded Copper,Class2 IEC60228.
2.Insulation:(EPR),Ethylene Propylene Rubber
3.Filler:Non-Hygroscopic Material
4.Sheath:(PVC),Polyvinyl Chloride
5.Armor:Galvanized Steel Wire Braid

FA-TPYC Shipboard Power and Lighting Cable 0.6/1KV Standard

JIS C 3410-1999
IEC 60092-350
IEC 60332-1
IEC 60332-3 Cat.AF(for FA-type)

Technical specification:

Technical specification

Conductor	S(D,T)	Tinned annealed stranded copper, class 2 according to IEC 60228
Conductor screen		Semi-conducting compound
Insulation	P	85°C EPR as per IEC 60092-351
Cabling		Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used
Overall shield	S	Tinned copper wire braid
Bedding	Y	PVC as per JIS C 3401
Armor	C (CB)	Galvanized steel wire braid(-C TYPE) or copper alloy wire braid(-CB TYPE)
Core identification		1C Black 2C Black, White 3C Black, White, Red
Outer sheath color		Black
