HVG MARINE CABLE 0018: FA-TPYCY Shipboard Medium Voltage Power Cable

Application

This Cable can be applied in Marine&Offshore and various ships, ship repair and oil platforms and other offshore buildings control device and general electric lighting,machinery and equipment of factories and mines are also equally applicable.

FA-TPYCY Shipboard Medium Voltage Power Cable standards

JISC 3410-1999
IEC 60092-350
IEC 60092-354
IEC 60332-1
IEC 60332-3 Cat.A(for FA-type)

Cable Model

3.6/6KV SPYCBY,(FA-) SPYCBY,TPYCY,(FA-) TPYCY
6/10KV SPYCBY,(FA-) SPYCBY,TPYCY,(FA-) TPYCY
8.7/15KV SPYCBY,(FA-) SPYCBY,TPYCY,(FA-) TPYCY

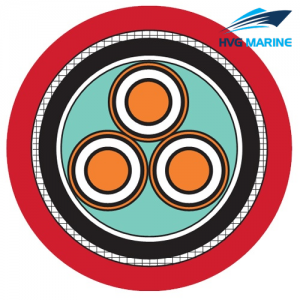

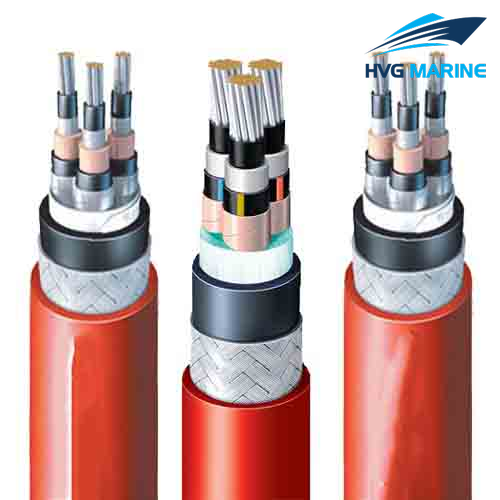

Cable construction

Installations recommendations

Minimum cable bending radius
The internal radius of cable bends which are not subjected to movements by expansion, is not to be less than : 6 times the external diameter of cable
Cable which are subjected to movements by expansion and the high voltage cable are to be bent to a form of at least 12 times cable diameter.
Installations temperature
Minimum recommended temperature of installations :
-10°C Ship wiring cable with PVC sheath
-20°C Elastomeric on/off shore cables
Installations pulling force
The cable pulling force can be estimated, as a maximum limit :5Kp per mm2 conductor area in the cable.Additional tension will be supplied from the braid and the insulation and sheathing compound.

Technical specification:

FA-TPYCY Shipboard Medium Voltage Power Cable

Conductor	T(S)	Tinned annealed stranded copper, class 2 according to IEC 60228
Conductor screen		Semi-conducting compound
Insulation	P	85°C EPR as per IEC 60092-351
Insulation screen		Semi-conducting compound /Tinned copper tape
Filler		Non-hygroscopic material (If necessary)
Bedding	Y	PVC,ST2 type
Armor	C (CB)	Galvanized steel wire braid(-C TYPE) or copper alloy wire braid(-CB TYPE)
Sheath	Y	PVC ST2 type
Core identification		3C Red, Yellow, Blue
Outer sheath color		Red
