HVG MARINE AUXILIARY MACHINERT 0148

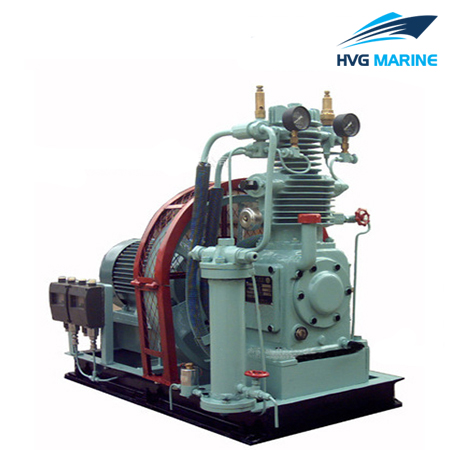

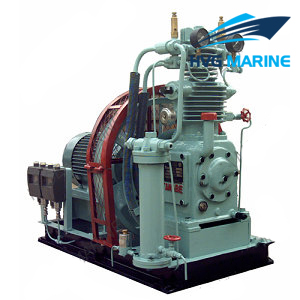

HVG MARINE AUXILIARY MACHINERT 0148: Series Marine Air-cooled Air Compressor

Product Description

HVG MARINE AUXILIARY MACHINERT 0148 Series Marine Air-cooled Air Compressor is mainly used for supplying air source for large ship emergency.Meanwhile,it is used for starting the main engine of small and medium size ships. Our HVG MARINE AUXILIARY MACHINERT 0148 series marine air compressor has features of high efficiency,compact structure,good cooling effect,light weight,small volume,low noise and reliable operation.

We are able to provide high quality marine air compressor.Our high-tech manufacture and considerate service will help minimize customers’ operation and maintenance costs to reach the goal of high efficiency,reliability,energy-saving and environmental protection. If you are interested in our product,please feel free to contact us directly.

Certificates:BV,CCS,NK,GL,ABS,RINA,etc. They can be offered along with marine air compressor.

Technical specification:

Main Technical Parameters:

Model		LSHC-20B		LSHC-30A		LSHC-40A			LSHC-50A
Type		Vertical,air-cooled,2stage compression
Number of cylinders		1
Cylinder diameter	One level(mm)	69.85		88.90		107.95			115
	Second level(mm)	34.92		34.92		38.10			100
Piston stroke(mm)		50.80		76.20		76.20			76.20
Rated pressure(MPa)		3.0
Rotating speed(r/min)		1000							870	970	1170	1460
Elastic horizontal straight coupling drive unit									Direct drive or belt/strap drive
Capacity(m3/h)		5	(4.5)	13.5	(12)		20	(18)	25	30	36	45
Motor power(kw)		1.6		4.0			5.5		7.0	7.3	9.0	10.4
Dimension(mm)		670×450×470		1140×520×810			1020×580×900		1180×680×900
Weight(kg)		130		280			280		300	300	320	320
