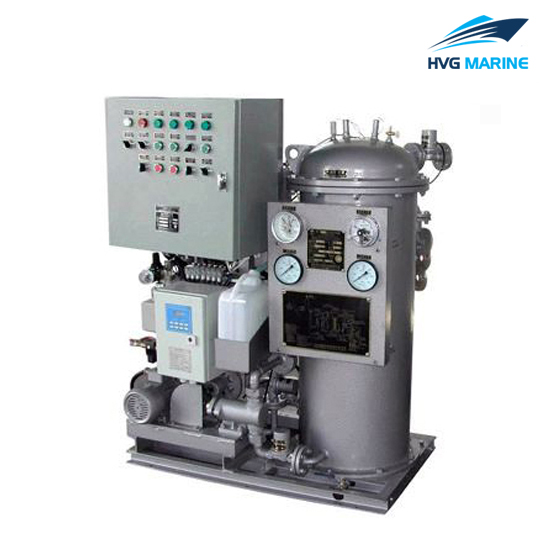

HVG MARINE AUXILIARY MACHINERT 0153: Marine Oil Water Separator
This Marine Oil Water Separator can be used to treat oily bilge water in order to make it reach the requirements of IMO.MEPC.107 (49) resolution, which is also called 15ppm bilge separator. It contains type approved 15ppm bilge water separator, 15ppm bilge alarm and automatic shut down Device. 15ppm bilge water separator
|
Model |
HVG MARINE AUXILIARY MACHINERT 0153 |
|||||||||
|
Technical Specifications |
0.25 |
0.5 |
1 |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
|
|
Rated capacity(m3/h) |
0.25 |
0.5 |
1 |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
|
|
Oil content of the discharged water |
≯15ppm |
|||||||||
|
Power of the electric heater（kw） |
1kw |
3kw |
6 |
6 |
6 |
6 |
6 |
12 |
12 |
|
|
Electrical System |
AC 380V/50Hz/3φ,AC 415V/50Hz/3φ,AC 440/60Hz/3φ,AC 480V/60HZ/3φ (optional) |
|||||||||
|
Power of the electric motor |
0.37kw |
0.55kw |
0.75kw |
1.1kw |
1.1kw |
1.5kw |
1.5kw |
2.2kw |
2.2kw |
|
|
Suction head |
≯6m-H2O |
|||||||||
|
Pressure of the discharged water |
5-10m-H2O |
|||||||||
|
Outline Dimension（L*W*H）(mm) |
1000*600 *1250 |
1100*690 *1460 |
1050*1000 *1620 |
1100*1130 *1650 |
1900*1120 *1700 |
1900*1120 *1900 |
1700*1500 *1900 |
2280*1700 *1900 |
2590*2000 *1900 |
|
|
Base |
5# |
6# |
6# |
6# |
8# |
8# |
8# |
10# |
10# |
|
|
Weight |
Dry Weight |
400 |
600 |
800 |
1060 |
1260 |
1500 |
1800 |
2100 |
2500 |
|
Wet Weight |
550 |
900 |
1200 |
1650 |
2260 |
2800 |
3200 |
3900 |
4600 |
|
|
Applicable Vessel (KDWT) |
<1 |
1-5 |
5-10 |
10-30 |
30-50 |
50-100 |
100-200 |
100-300 |
>300 |
|
