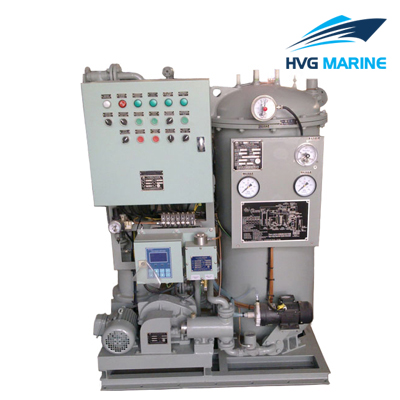

    HVG MARINE AUXILIARY MACHINERT 0154: Marine Oily Water Separator

    International Maritime Organization concerning the Marine Environment Protection Committee conferred upon it by international convention for the resolution IMO. MEPC. 107 (49) adopted on 18 July 2003. The resolution made the fully new requirement referring to 15ppm bilge treatment plant in Annex I of MARPOL73/78.

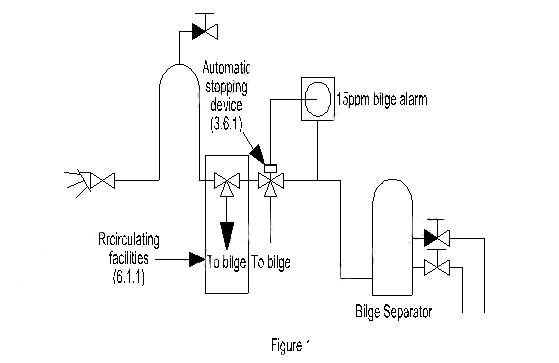

    To comply with resolution IMO MEPC.107 (49), on board, especially ocean-going ships, they must be installed on board: 15ppm bilge separator, 15ppm bilge alarm and automatic stopping device.

    Principle

    The device adopts the combination of steam (electrical) heating. The1st stage cone plate gravity and coalesce separation; 2nd stage fiber filter and 3rd stage membrane permeation in order to make the treated bilge water to meet the requirements of discharge standard of the resolution of IMOMEPC.107 (49).



    Technical specification:

    • Technical Specifications

    Model

    YWC-

    Technical Specifications

    0.25

    0.5

    1

    1.5

    2

    2.5

    3

    4

    5

    Rated capacity(m3/h)

    0.25

    0.5

    1

    1.5

    2

    2.5

    3

    4

    5

    Oil content of the discharged water

    ≯15ppm

    Power of the electric heater（kw）

    1kw

    3kw

    6

    6

    6

    6

    6

    12

    12

    Electrical System

    AC 380V、50Hz、3φ/ AC 415V、50Hz、3φ/AC 440、60Hz、3φ/AC 480V、60HZ、3φ

    Power of the electric motor

    0.37kw

    0.55kw

    0.75kw

    1.1kw

    1.1kw

    1.5kw

    1.5kw

    2.2kw

    2.2kw

    Suction head

    ≯6m-H2O

    Pressure of the discharged water

    5-10m-H2O

    Outline Dimension（L*W*H）(cm)

    100*60

    *125

    110*69

    *146

    105*100

    *162

    110*113

    *165

    190*112

    *170

    190*112

    *190

    170*150

    *190

    228*170

    *190

    259*200

    *190

    Base

    5#

    6#

    6#

    6#

    8#

    8#

    8#

    10#

    10#

    Weight

    Dry Weight

    400

    600

    800

    1060

    1260

    1500

    1800

    2100

    2500

    Wet Weight

    550

    900

    1200

    1650

    2260

    2800

    3200

    3900

    4600
