HVG MARINE AUXILIARY MACHINERT 0055: Pressure Water Tank
1. Brief Description
- High quality pressure water tank (Hydrophore tank), and Combination pressure water tank supply.
- The quality have approved by IMO. The CCS, ABS, BV, EC, GL etc. certificates for you choose.
- The material usually be carbon steel or stainless steel.
- We are also navy supplier.
2. Pressure Water Tank
- The Pressure Water Tank is appropriate for the water supply system (fresh water, seawater) on board.
- Also, it is an instrument for obtaining samples of water (as in a river, lake, or ocean) from any desired depth.

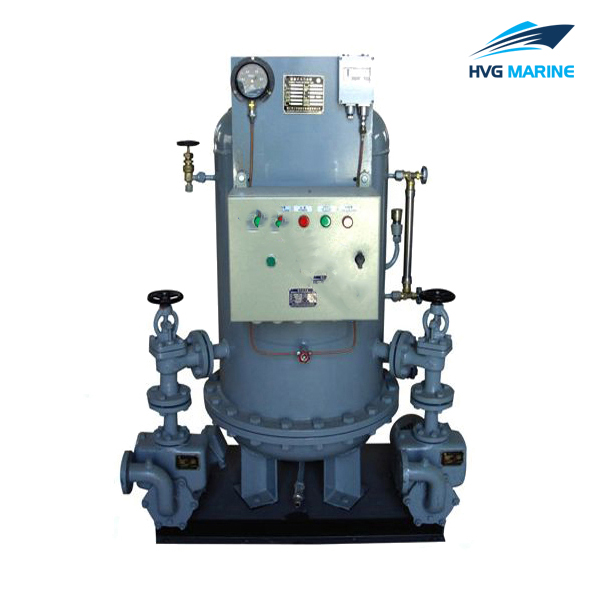

3. Combination Pressure Water Tank
A combination pressure water tank is used in tall buildings and marine environments to pump, store and supply fresh or grey water. Such a system will consist of one or more chambers with valves, sensors and pipework.
Often under pressure and in combination with a calorifier, hydrophore chambers can provide hot or cold fresh or sea water to a ship in a controlled manner, and provide additional regulatory measures, such as temperature and pressure control.
|

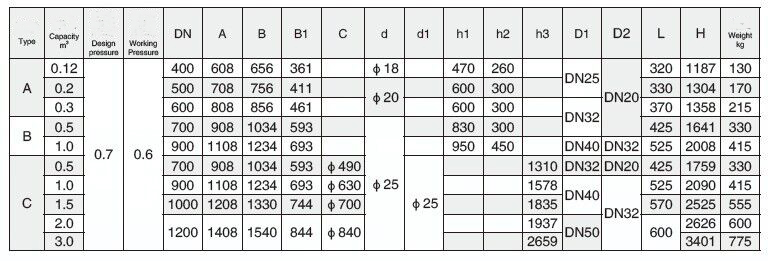

Model |
ZYG- |
|||||||
|
0.12 |
0.2 |
0.3 |
0.5 |
1.0 |
1.5 |
2.0 |
||
|
Volume（m3） |
0.12 |
0.2 |
0.3 |
0.5 |
1.0 |
1.5 |
2.0 |
|
|
Working pressure（MPa） |
0.4 |
|||||||
|
Design pressure （MPa） |
0.44 |
|||||||
|
Test pressure （MPa） |
0.66 |
|||||||
|
Take-off pressure of safety valve（MPa） |
0.42 |
|||||||
|
Working temperature（℃） |
0~45 |
|||||||
|
Design temperature（℃） |
50 |
|||||||
|
Water pump |
Model |
1.5CWX-1.5/1.5A |
1.5CWX-2/2A |
1.5CWX-3/3A |
||||
|
Flow rate（m3/h） |
3 |
6.5 |
10 |
|||||
|
Pumping head (m) |
40 |
40 |
40 |
|||||
|
Power(kW) |
2.2 |
3 |
4 |
|||||
