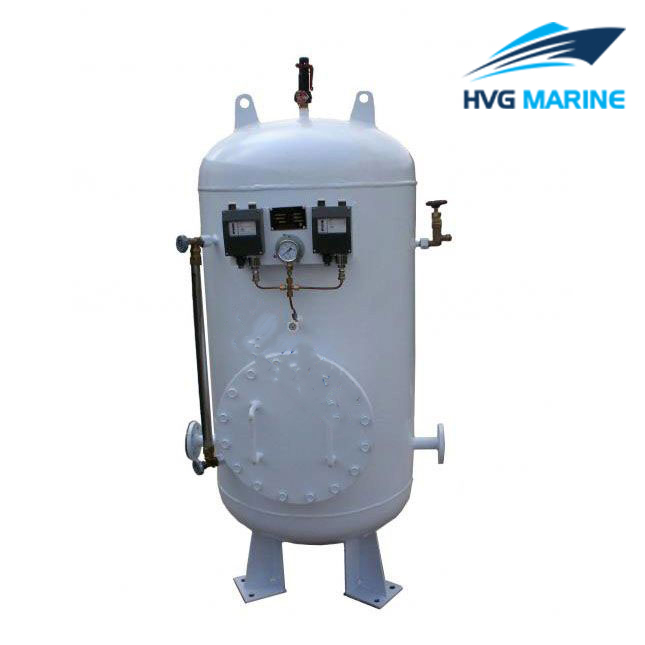

HVG MARINE AUXILIARY MACHINERT 0051: Hydrophore Tank
1.Technical Requirements:
1). Flange Standard：CB/T46-1999 PN1.0;
2). The shell cover thickness including the forming thinning;
3). The system including security settings;
4). Pipes and support same as the drawings.

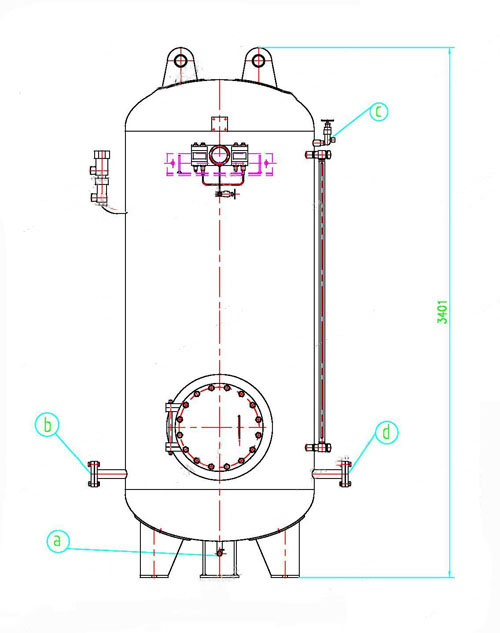

2. Outer Joint:
| Mark | Name | Size | Standard |
| a | relief outlet | DN32 | |
| b | Water Inlet | DN50 | CB/T46-1999 PN1.0 |
| c | Compressor Air Inlet | DN10 | CB*53-80 |
| d | Water Outlet | DN50 | CB/T46-1999 PN1.0 |
