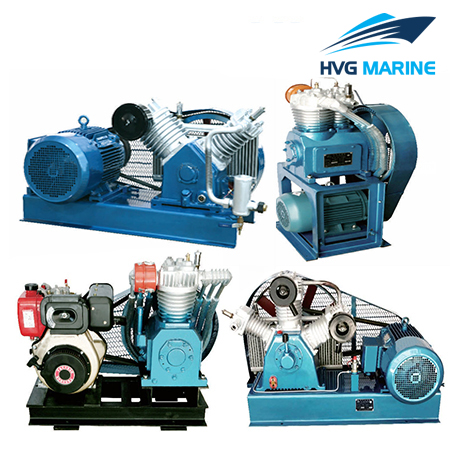

HVG MARINE AUXILIARY MACHINERT 0014: Marine Medium Pressure Air-cooled Series Air Compressor

Marine Medium Pressure Air-cooled Air Compressor is mainly used for starting the main engine of ships and vessels and various marine diesel engine.It has a single-row, double-row,V,W and the secondary compression piston type.Its displacement capacity is 5~60 m3/h.Its specified pressure is 3.0Mpa.Meanwhile,It has manual or automatic stop,start and unloading relief function.

HVG offers you high quality marine middle pressure air compressors.Marine Medium Pressure Air-cooled Air Compressor can be customized according to customers’ requirements.For any more information,welcome to contact us directly.Excellent service and is available.

Features of Marine Medium Pressure Air-cooled Air Compressor:

Its type has a single-row,double-row,V,W and the secondary compression piston type
With high efficiency,light weight,small volume, low noise, smooth operation
Displacement capacity: 5 ~ 60 m3 / h
The specified pressure: 3.0 MPa
With manual or automatic stop,start and unloading relief function
Fit for starting the main engine of ships and vessels and various marine diesel engine

These functions as follow are available according to clients’ requests:

1. The two main machines each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose

Technical specification:

Main Techincal Specifications:

Model	Displacement capacity		Specified Pressure	Rotating Speed	Motor Power		Dimension（L×W×H）	Weight
Model	m3/h	m3/ min	MPa	r/min	kW	HP	mm	kg
CZ-5/30FZK	5	0.08	3.0	520	2.2	3	970×480×750	170
CZ-10/30FZK	10	0.17		500	3	4	970×480×750	175
CZ-20/30FZK	20	0.34		1000	5.5	7.5	970×480×750	200
2ZF-0.34/30-B	20.4			600			940×500×850	210
2ZF-0.34/30-B (Vertical)	20.4			600			586×520×1020	185
CVF-30/30	30	0.5		500	7.5	10	1100×650×580	275
CVF-40/30	40	0.67		640	11	15	1100×650×580	300
CWF-60/30	60	1.0		650	15	20	1310×714×810	366
CZC-10/30F （Emergency Air Compressor）	10	0.17		500	Diesel-engine Model KM178F		970×400×700	140
CZC-10/30F （Emergency Air Compressor）	10	0.17		500	Diesel-engine Model KM178F		Starting way:pulling a centrifugal clutch by hand to start	140
2ZFC-0.34/30-B （Emergency Air Compressor）	20.4	0.34		600	Diesel-engine Model KM186F		1000×500×780	170
2ZFC-0.34/30-B （Emergency Air Compressor）	20.4	0.34		600	Diesel-engine Model KM186F		Starting way:pulling a centrifugal clutch by hand to start	170
