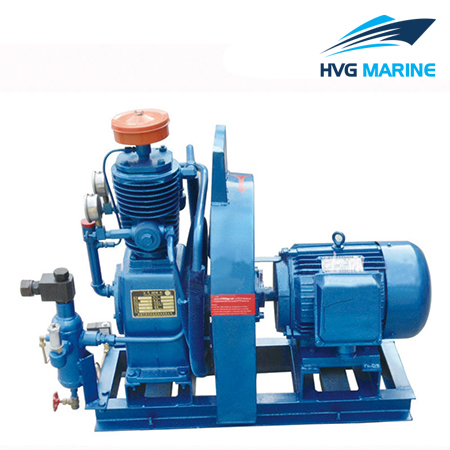

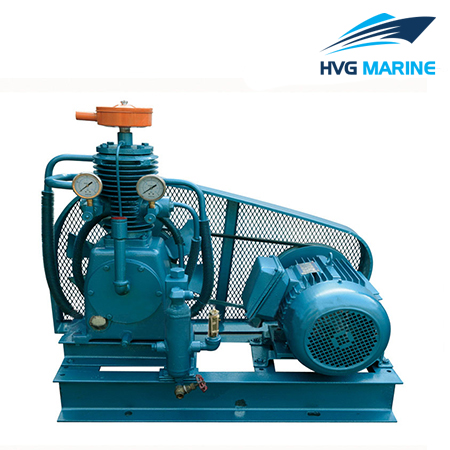

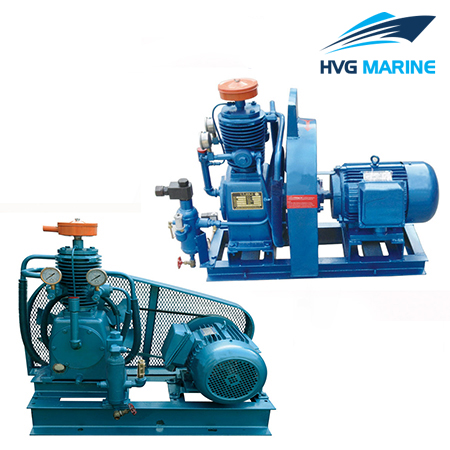

HVG MARINE AUXILIARY MACHINERT 0011: Marine Medium Pressure Air Cooling Air Compressor CZF-33

CZF-33 marine air compressor is widely used for starting the engine of all kinds of ships. It The displacement capacity is 14.5~22m3/h.The weight is 160~180kg. It is a kind of medium pressure air cooling air compressor.Belt type and direct connection type are available.

HVG has professional technology and equipment. The design and manufacture conforms to the standard of ISO, IMO and various classification Societies. Therefore,various marine air compressors are available,such as marine low pressure air-cooled air compressor,marine medium pressure air-cooled air compressor,marine medium pressure water-cooled air compressor,etc.

Our marine air compressors can be available according to clients’ specific requests.For more information,please feel free to contact us. We will offer you quick and satisfactory service.

Technical specification:

Main Technical Specifications:

Model	Type	Displacement capacity m3/h	Specified Pressure MPa	Rotating Speed r/min	Motor Power kw	Weight kg	Dimension（L×W×H）mm	Rotating Way
CZF-33	Vertical, air cooling,2 stage compression piston type	14.5	3.0	1200	4	160	970×480×750	Direct connection or belt rotation
		18.5		1500	5.5	180
		22		1800	5.5	180
