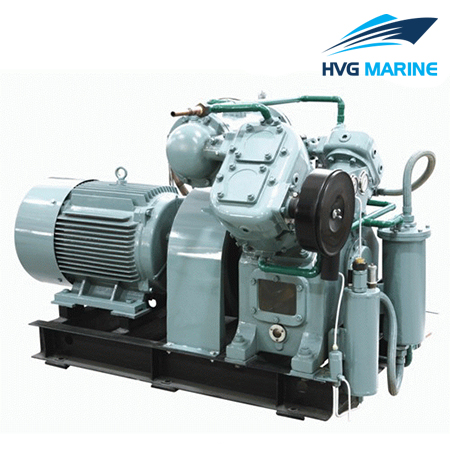

HVG MARINE AUXILIARY MACHINERT 0007: Marine V-type Medium Pressure Water-cooled Air Compressor

CV-120/30 and CV-90/30 marine water-cooled air compressor is mainly used for starting the main engine of ships and various medium-sized diesel engines.Its type is V-type,double-row,water-cooled and piston type.The drive way is direct connection drive type. It is automatic control unit. The displacement capacity is 90~120 m3/h.

HVG high-tech manufacture and excellent service will help minimize customers’ operation and maintenance costs to reach the goal of high efficiency,reliability,energy-saving and environmental protection.If you have any question,please feel free to contact us directly.

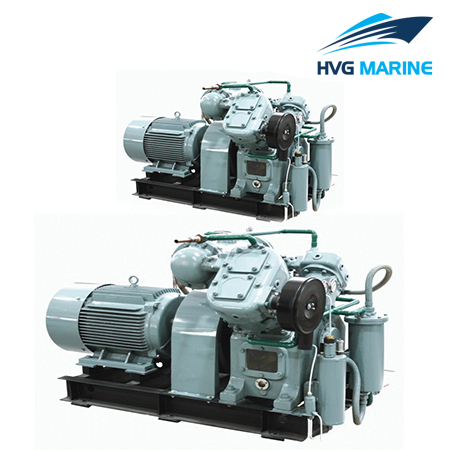

Models are available:CV-120/30, CV-90/30

Product Features:

Reliable operation
Low noise
High efficiency
Low exhaust temperature

These functions as follow are available according to clients’ requests:

1. The main and standby machines each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose

Technical specification:

Main Technical Parameters:

Model	Displacement Capacity		Specified Pressure（MPa）	Rotating Speed（r/min）	Motor Power		Dimension（L×W×H）mm	Weight（kg）
Model	m3/h	m3/ min	Specified Pressure（MPa）	Rotating Speed（r/min）	kW	HP	Dimension（L×W×H）mm	Weight（kg）
CV-90/30 (Direct Connection)	90	1.5	3.0	730	22	30	1600×1010×1050	900
CV-120/30 (Direct Connection)	120	2	3.0	975	30	40	1600×1010×1050	1000
