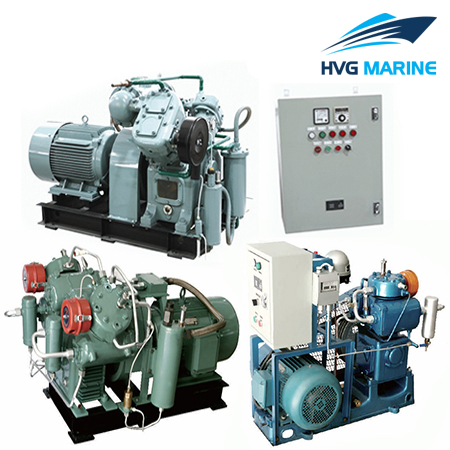

HVG MARINE AUXILIARY MACHINERT 0006: Marine Medium Pressure Series Water-cooled Air Compressor

This marine air compressor is automatic control unit. The displacement capacity is 20~120 m3/h.The rated pressure is 3.0 Mpa. Marine medium pressure water-cooled air compressor is mainly suitable for starting the main engine of ships and various medium-sized diesel engines. Its type has V-type,single-row,double-row,water-cooled and piston type. There are direct connection drive type and belt drive type. It has manual or automatic stop,start and unloading relief function.

HVG high-tech manufacture and excellent service will help minimize customers’ operation and maintenance costs to reach the aim of high efficiency, reliability, energy-saving and environmental protection. Please feel free to contact us directly if you are interested in our products.

Various marine medium pressure water-cooled air compressor as follows are available:

Marine Single-row Medium Pressure Water-cooled Air Compressor
Marine Double-row Medium Pressure Water-cooled Air Compressor
Marine V-type Medium Pressure Water-cooled Air Compressor

Product Features:

Low exhaust temperature,ow noise,reliable operation
Compact structure,high efficiency,light weight,small volume

These functions as follow are available according to clients’ requests:

The main and standby machines each control function
The temperature control function
The inlet pressure controller
The exhaust outlet high pressure hose

Technical specification:

Main Technical Parameters:

Model	Displacement Capacity		Specified Pressure（MPa）	Rotating Speed（r/min）	Motor Power		Dimension（L×W×H）mm	Weight（kg）
Model	m3/h	m3/ min	Specified Pressure（MPa）	Rotating Speed（r/min）	kW	HP	Dimension（L×W×H）mm	Weight（kg）
CZ—20/30SZK	20	0.34	3.0	960	5.5	7.5	900×600×850	250
CZ—20/30SZK (Belt)	20	0.34		1000	5.5	7.5	1070×490×810	225
CV-30/30	30	0.5		720	7.5	10	1230×730×690	330
CV-40/30	40	0.67		870	11	15	1230×730×690	340
CV-50/30	50	0.83		970	11	15	1230×730×690	340
CV-90/30	90	1.5		730	22	30	1600×1010×1050	900
CV-120/30	120	2		975	30	40	1600×1010×1050	1000
