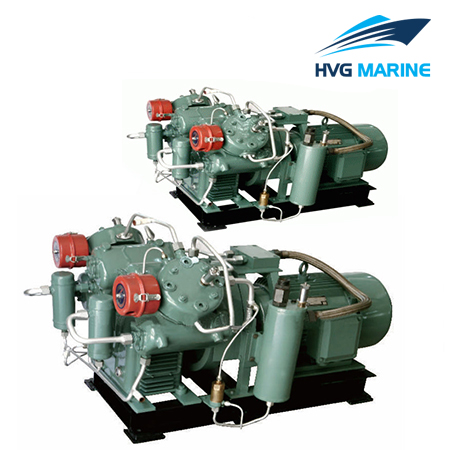

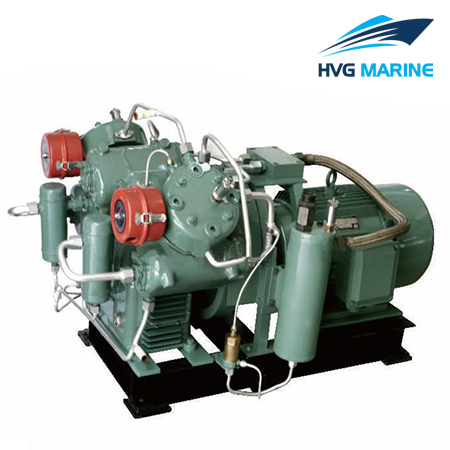

HVG MARINE AUXILIARY MACHINERT 0008: Marine Double-row Medium Pressure Water-cooled Air Compressor

The displacement capacity is 30~50 m3/h.The rated pressure is 3.0 Mpa. It is automatic control unit. CV series marine water-cooled air compressor is mainly used for starting the main engine of ships and various medium-sized diesel engines.Its type is V-type,double-row,water-cooled and piston type.The drive way is direct connection drive type.

HVG high-tech manufacture and excellent service will help minimize customers’ operation and maintenance costs to reach the aim of high efficiency,reliability,energy-saving and environmental protection.Please feel free to contact us directly if you are interested in our products.

Models are available:CV-50/30,CV-40/30,CV-30/30

Product Features:

Low exhaust temperature,small volume,reliable operation
Low noise,compact structure,high efficiency,light weight

These functions as follow are available according to clients’ requests:

1. The two main machines each control function
2. The temperature control function
3. The inlet pressure controller
4. The exhaust outlet high pressure hose

Technical specification:

Main Technical Parameter:

Model	Displacement Capacity		Specified Pressure（MPa）	Rotating Speed（r/min）	Motor Power		Dimension（L×W×H）mm	Weight（kg）
Model	m3/h	m3/ min	Specified Pressure（MPa）	Rotating Speed（r/min）	kW	HP	Dimension（L×W×H）mm	Weight（kg）
CV-30/30 (Direct Connection)	30	0.5	3.0	720	7.5	10	1230×730×690	330
CV-40/30 (Direct Connection)	40	0.67		870	11	15	1230×730×690	340
CV-50/30 (Direct Connection)	50	0.83		970	11	15	1230×730×690	340
