HVG FIRE FIGHTING EQUIPMENT 0188

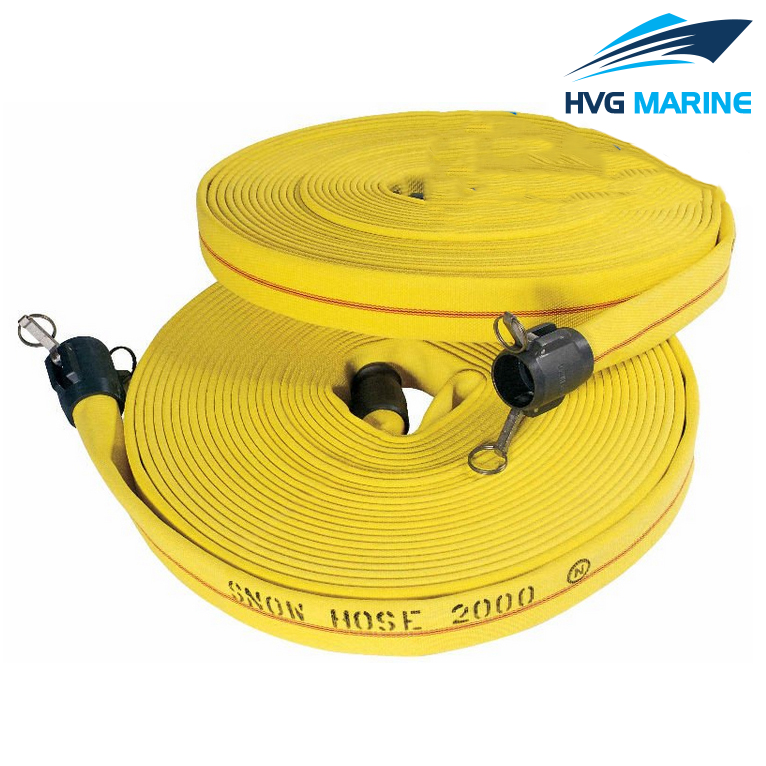

HVG FIRE FIGHTING EQUIPMENT 0188: Snow- making Hose

Snow-making Hose is the samll diameter PU hose with high working pressure and double jackets, often used for artificial snow-making in the ski field.Its warp and weft of the jacket made by high strength polyester filament with low elongation. The jacket should be evenly and firmly woven by circular loom and free from visible defects, thread knots, lumps and irregular twists.

Characteristics of PU hose:

PU hose has outstanding high pressure proof, oil resistance, anti-corrosion and low temperature proof, etc. Moreover, it can be used for conveniently with light weight and long service life.

Product details:

Warp: polyester filament
Weft: polyester filament
I.D.(inch): 1-1/2′,1-3/4′, 2′, 2-1/2

Technical specification:

Specifications:

Technical Requirements
I.D (Inch/mm)		Working Pressure (Bar/Psi)	Burst Pressure (Bar/Psi)
1-1/2′	38	21/300,28/400,30/450,40/600	63/900,84/1200.90/13500/120/18000
1-3/4′	45	21/300,28/400,30/450,40/600	63/900,84/1200.90/13500/120/18000
2′	52	21/300,28/400,30/450,40/600	63/900,84/1200.90/13500/120/18000
2-1/2′	65	21/300,28/400,30/450,40/600	63/900,84/1200.90/13500/120/18000
