HVG FIRE FIGHTING EQUIPMENT 0187

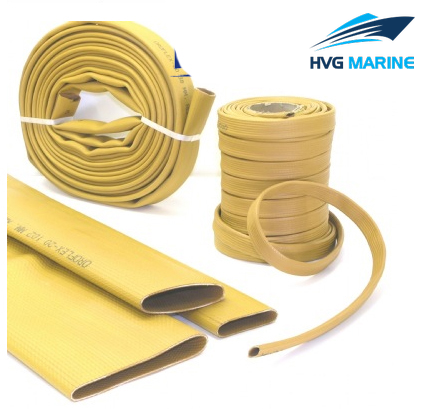

HVG FIRE FIGHTING EQUIPMENT 0187: Durable Hose with Nitrile Rubber Covered & Lined

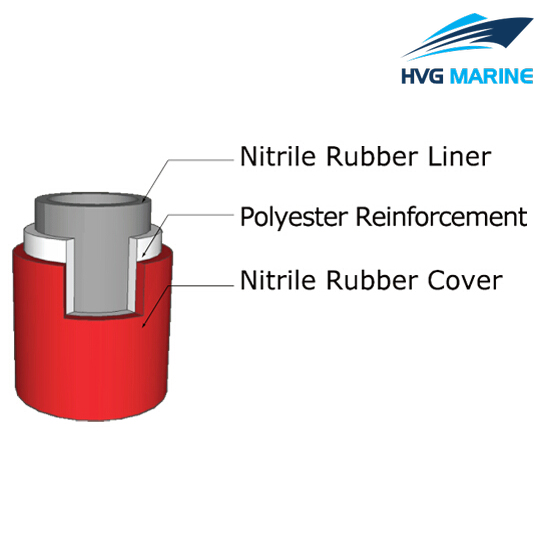

The outer and inner lining of Nitrile Rubber Durable Hose are good quality nitrile rubber, and the lining is produced by using the cold feed extruding craft of rubber. The lining has even luster, flat surface and the outer layer has reinforcing-rib with good wear-resistance. It has good oil resistance, anti-corrosion and abrasion performance.This kind of fire hose is suitable for the complex working conditions, commonly used in petroleum, chemical and other fire prevention fields.

Quick details:

I.D.(Inch): 1-1/2′, 1-3/4′, 2′, 2-1/2′, 3′, 4′, 5′, 6′
Color:Yellow, Red, White, etc

Technical specification:

Specifications:

Technical Requirements
I.D. (Inch/mm)		Working Pressure (Bar/Psi)	Burst Pressure (Bar/Psi)
1-1/2′	38	8/125,10/150,14/200,17/250,21/300	24/375,30/450,42/600,51/750,63/900
1-3/4′	45	8/125,10/150,14/200,17/250	24/375,30/450,42/600,51/750
2′	52	8/125,10/150,14/200,17/250	24/375,30/450,42/600,51/750
2-1/2′	65	8/125,10/150,14/200,17/250	24/375,30/450,42/600,51/750
3′	75	8/125,110/150,14/200	24/375,30/450,42/600
4′	100	8/125,10/150	24/375,30/450
5′	125	8/125,10/150	24/375,30/450
6′	150	8/125,10/150	24/375,30/450
