HVG FIRE FIGHTING EQUIPMENT 0186

HVG FIRE FIGHTING EQUIPMENT 0186: Double Jacket EPDM Lining Hose

Double Jacket EPDM Lining Hose is widely used in fire prevention place and high temperature liquid transportation of petroleum or chemical products in developed countries. It has good oil resistance, acid, alkali, aging and ozone proof, anti-ultraviolet and corrosion.

Product details:

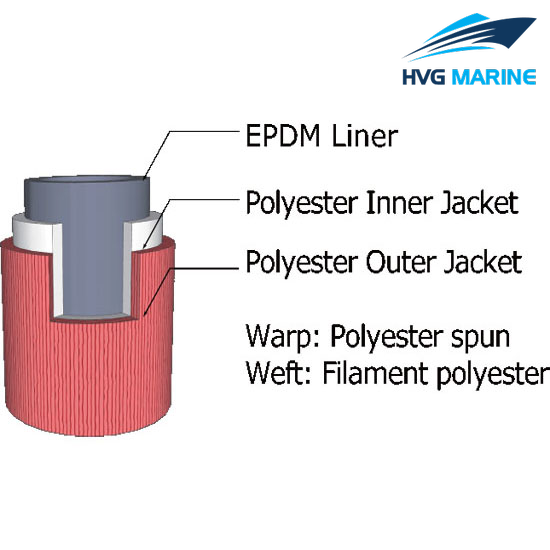

Double Jacket EPDM Lining Hose
Outer jacket: polyester filament & staple
Inner lining: EPDM
I.D.(Inch): 1′-1/2′ , 1′-3/4′, 2′, 2′-1/2′, 3′,
High Working pressure: 28bar

Technical specification:

Specifications:

I.D. (inch/mm)		Working Pressure(Bar/Psi)	Burst Pressure(Bar/Psi)
1′-1/2′	38	17/250,21/300,28/400	51/750,63/900,84/1200
1′-3/4′	42	17/250,21/300,28/400	51/750,63/900,84/1200
2′	52	17/250,21/300,28/400	51/750,63/900,84/1200
2′-1/2′	65	17/250,21/300,28/400	51/750,63/900,84/1200
3′	75	17/250,21/300	51/750,63/900
