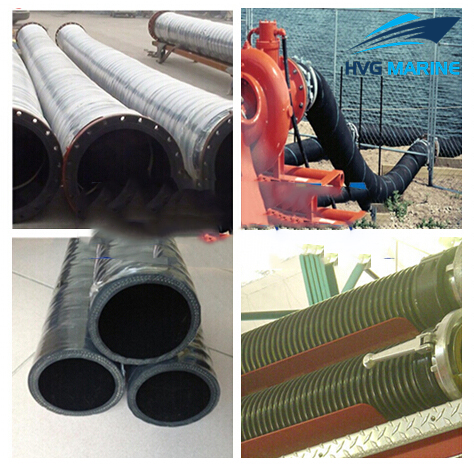

    HVG FIRE FIGHTING EQUIPMENT 0180: Rubber Hard Suction Hose

    Rubber Hard Suction Hose sometimes called hard suction, is usually a rubber-covered hose with internal mental reinforcements. It is used to suck water out of unpressurized sources, such as ponds or rivers, by means of a vacuum. It is widely used in industry, agriculture, factory, mining, etc

    Product details:

    • Hose tube: SBR synthetic rubber
    • Reinforcement layer: High tensile tire cord with helix steel wire.
    • Outer cover: SBR synthetic rubber
    • I.D.(inch): 3′,4′,5′,6′,8′,10
    • Working temperature: -30 centigrade degree to +80 centigrade degree

    Characters:

    • 1. Abrasion resistant, weather resistant and zone resistant
    • 2. High pressure, durable and strong.

    Technical specification:

    • Specifications:
    Technical Requirements
    I.D.

    (Inch/mm)

    Wall thickness

    (mm)

    Working Pressure
    (Bar/Psi)
    Bending Radius

    (Inch/mm)

    3′ 76 6.5 10/150 20 500
    4′ 102 7.5 10/150 28 700
    5′ 127 9.5 10/1500 40 1000
    6′ 152 10 10/1500 48 1200
    8′ 203 11 10/150 64 1600
    10′ 254 14 10/150 100 2500
