HVG FIRE FIGHTING EQUIPMENT 0177

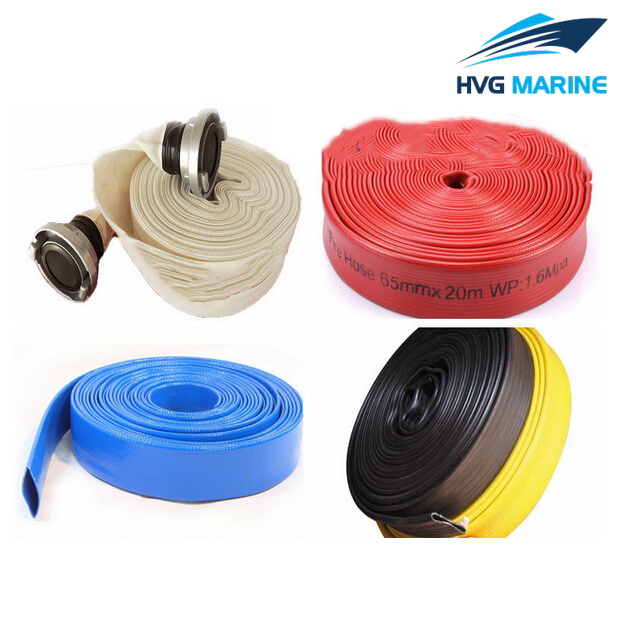

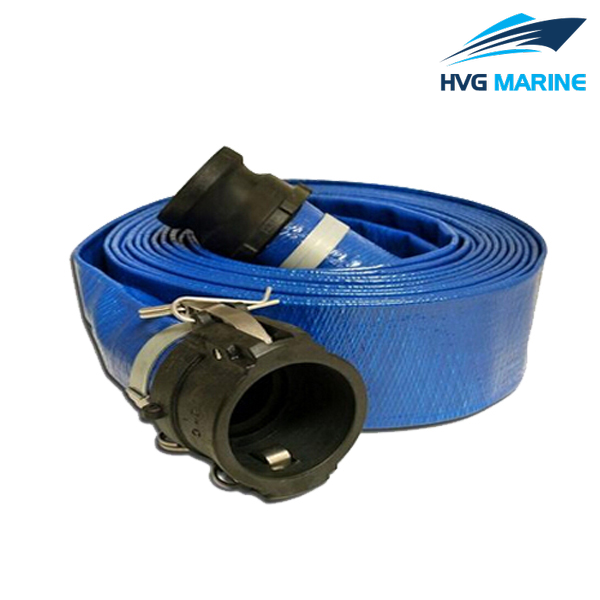

HVG FIRE FIGHTING EQUIPMENT 0177: High Pressure Double Jacket Fire Hose

High Pressure Double Jacket Fire Hose is woven by high intensity of polyester filament or polyester short-fiber (twill/plain). It is high pressure resistance, low temperature resistance, anti-corrosion, aging resistance, wear-resisting due to the protection of double layer.

Product details:

I.D.(Inch): 1-1/2′, 1-3/4′, 2′, 2-1/2′, 3′, 4′, 5′, 6′
Color: Blue, Black, etc
Length: 10-40m

Technical specification:

Specifications:

Technical Requirements
I.D. (Inch/mm)		Working Pressure (Bar/Psi)	Burst Pressure (Bar/Psi)	Length
1′	25	10/150, 13/195, 16/240, 20/300	30/450, 39/580, 48/720, /60/900	10 15 20 25 30
1-1/2′	40
2′	50
2-1/2′	65
3′	80
3-1/2′	90
4′	100
4-1/2′	115
5′	125
6′	150
7′	175
8′	200
10′	250
