HVG FIRE FIGHTING EQUIPMENT 0176

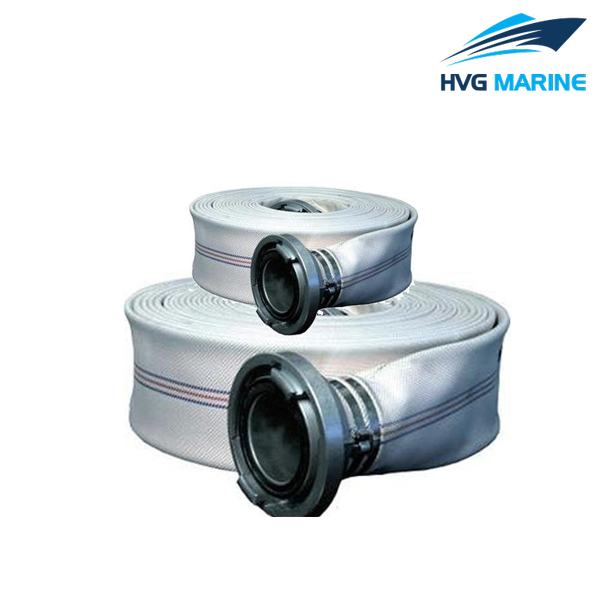

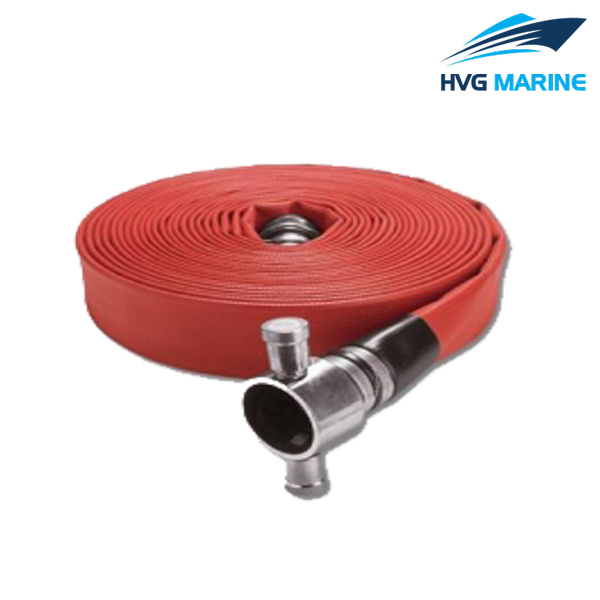

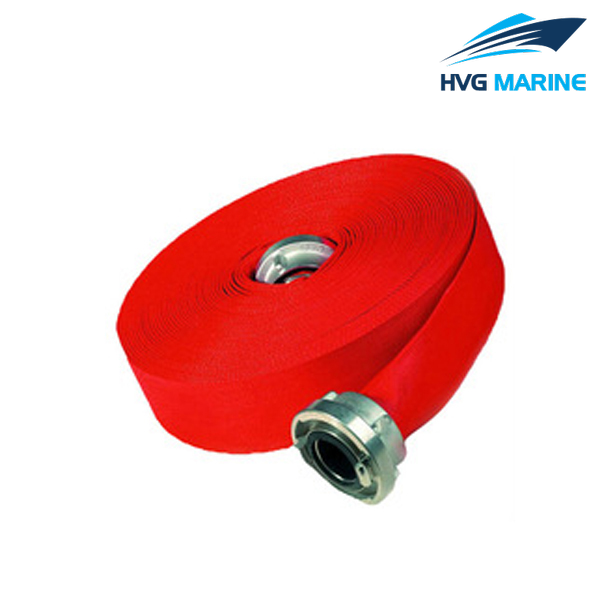

HVG FIRE FIGHTING EQUIPMENT 0176: Attack Hose

Attack Hose is usually the PU lined fire hose used for fire prevention by fire brigade, assembled with fire engine. Also it’s often used for indoor fire prevention system in upscale place and developed countries.

Characters of PU Lining: PU Lining hose has outstanding high pressure proof, oil resistance, anti-corrosion and low temperature proof, etc. Moreover, it can be used for conveniently with light weight and long service life.

Product details:

Wrap: High strength polyester staple or filament
Lining: PU
I.D.(inch): 1-1/2′, 1-3/4′, 2′, 2-1/2′, 3′, 4′, 5′, 6′
Main usage: Used in cold environment or more upscale places

Technical specification:

Specifications:

Technical Requirements
I.D. (Inch/mm)		Working Pressure (Bar/Psi)	Burst Pressure (Bar/Psi)
1-1/2′	38	10/150,14/200,17/250,21/300,28/400	30/450,42/600,51/750,63/900,84/1200
1-3/4′	45	10/150,14/200,17/250,21/300,28/400	30/450,42/600,51/7500,63/900,84/1200
2′	52	10/150,14/200,17/250,21/300,28/400	30/450,42/600,51/750,63/900,84/1200
2-1/2′	65	110/150,14/200,17/250,21/300,28/400	30/450,42/600,51/750,63/900,84/1200
3′	75	110/150,14/200,17/250,21/300,28/400	30/450,42/600,51/750,63/900,84/1200
4′	100	10/150,14/200,17/250	30/450,42/600,51/750
5′	125	10/150,14/200	30/450,42/600
6′	150	10/150,14/200	30/450,42/600
