HVG DECORATIVE MATERIAL 0029

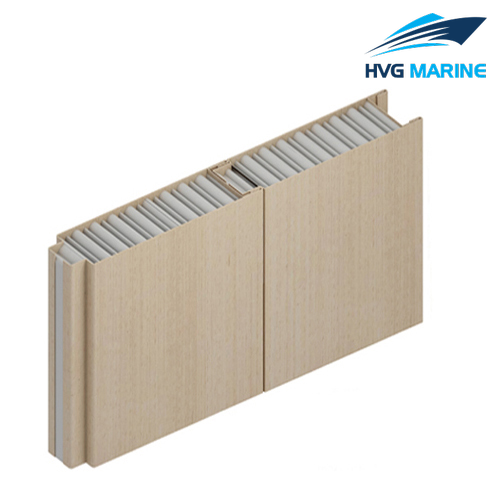

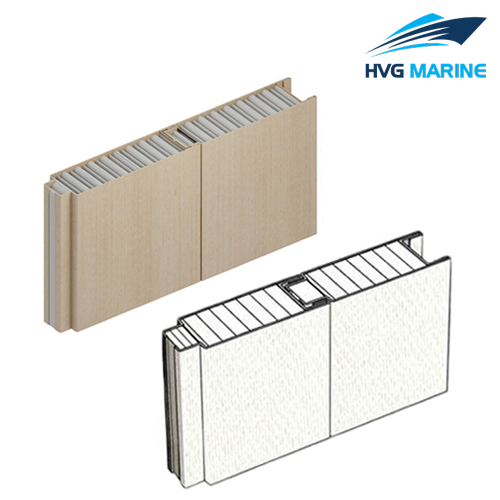

HVG DECORATIVE MATERIAL 0029: Type A Steel Sheet Composite Aluminum Honeycomb Wall Panel

This product is made of composite aluminum honeycomb, and it is used as wall panel for various vessels. We can supply four types composite aluminum honeycomb, this one is the type A with galvanized steel sheet on the surface. The core material of it is aluminum honeycomb. This marine aluminum honeycomb wall panel is fire resistant and the fire protecting ratings are B-15, B-0, and C. To meet customer’s different demand, the length of this wall panel is customized.

Features:

1. Material: PVC/PET film laminated(low-flame spread) or galvanized steel sheet, aluminum honeycomb
2. Fire proof rating: B-15, B-0, C
3. Thickness: 50mm, 30mm, 25mm, 20mm, 15mm
4. Width: 550/600mm
5. Length is customized (max. 3600mm)
6. Certificates: CCS, BV, DNV, KR, NK, RINA, etc.

Technical specification:

Specifications:

Model	B50A	B30A	B25A	B20A	B15A
Fire proof rating	B-15	B-0	B-0	C	C
Weight	18 kg/㎡	12.3 kg/㎡	11.6 kg/㎡	11.42 kg/㎡	11.24 kg/㎡
Thickness	50mm	30mm	25mm	20mm	15mm
Dimension	width 550/600mm×thickness(50/30/25/20/15mm)×required length(max. 3600mm)
Sound reduction	33 dB(A)	30 dB(A)	29 dB(A)	27 dB(A)	25 dB(A)
Thermal transmittance	2.25 Kcal/㎡·h℃	3.25 Kcal/㎡·h℃	3.35 Kcal/㎡·h℃	3.35 Kcal/㎡·h℃	3.35 Kcal/㎡·h℃
Tolerances	Width(-1,0), Length ±3, Thickness(-1,0)
Surface finish	PVC/PET film laminated or galvanized steel sheet
Core material	Aluminum honeycomb
