HVG DECORATIVE MATERIAL 0028

HVG DECORATIVE MATERIAL 0028: Type A Aluminum Sheet Composite Aluminum Honeycomb Wall Panel

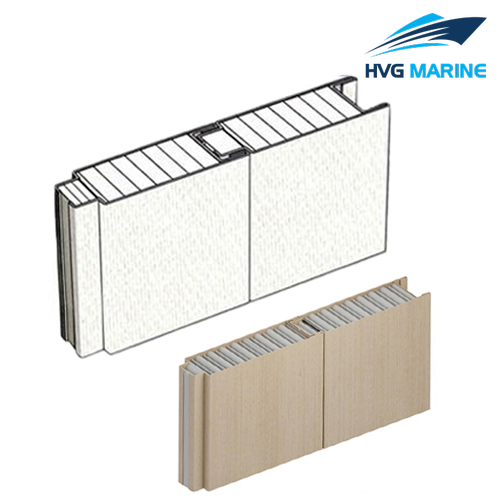

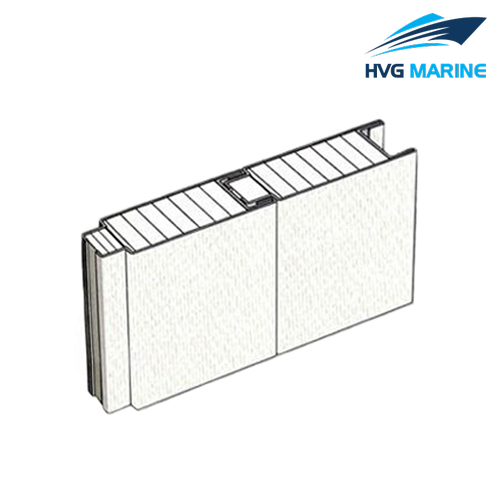

Aluminum honeycomb panel is one kind of marine decorative materials used as wall panel in the cabins and washroom on various ships. This surface of this marine wall panel is PVC/PET laminated or aluminum sheet, and the core material is composite aluminum honeycomb. Our company four types of the aluminum honeycomb wall panel, this is the type A with aluminum sheet. Certificates about this marine aluminum wall panel are CCS, BV, DNV, KR, NK, RINA, etc.

Features:

1. Fire protecting rating: C
2. Surface material: PVC/PET film laminated or aluminum sheet
3. Core material: aluminum honeycomb
4. Thickness: 50mm, 30mm, 25mm, 20mm, 15mm
5. Normal width: 550/600mm, Length customized (max. 3600mm)
6. Certificates: CCS, BV, DNV, KR, NK, RINA, etc.
7. Design and manufacture special structure required by clients

Technical specification:

Specification:

Model	B50C	B30C	B25C	B20C	B15C
Fire protecting rating	C	C	C	C	C
Thickness	50mm	30mm	25mm	20mm	15mm
Dimension	W× T × L: 550/600mm× 50/30/25/20/15mm × (max. 3600mm)
Sound reduction	33 dB(A)	30 dB(A)	29 dB(A)	27 dB(A)	25 dB(A)
Weight	6.5 kg/㎡	5.6kg/㎡	5.4 kg/㎡	5.2 kg/㎡	5.0 kg/㎡
Thermal transmittance	2.25 kcal/㎡·h℃	3.25 kcal/㎡·h℃	3.35 kcal/㎡·h℃	3.35kcal/㎡·h℃	3.35 kcal/㎡·h℃
Surface finish	PVC/PET film laminated (low flame-spread) or aluminum sheet
Core material	Aluminum honeycomb
Tolerances	Width(-1,0), Thickness(-1,0), Length ±3,
