HVG DECORATIVE MATERIAL 0027

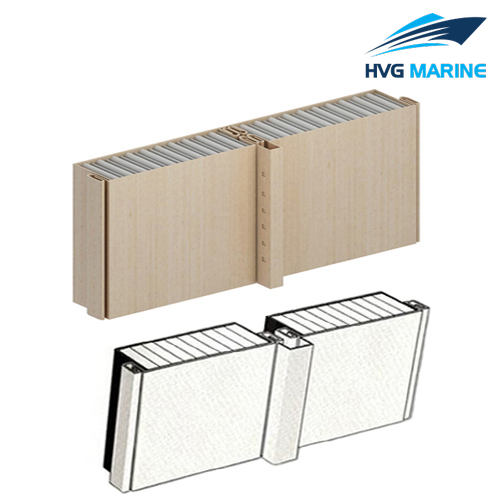

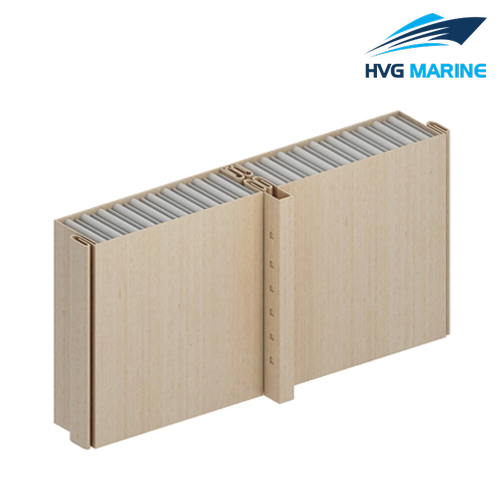

HVG DECORATIVE MATERIAL 0027: Type C Steel Sheet Composite Aluminum Honeycomb Wall Panel

Made with composite aluminum honeycomb, this product is used as the wall panel of cabins, deckhouse and other room on various vessels. There are four types for the composite aluminum honeycomb wall panel. This is the type C with galvanized steel sheet on the surface. And its core material is aluminum honeycomb. This aluminum honeycomb wall panel for decoration is fire resistant and there are three fire protecting ratings: B-15, B-0, and C. Certificates like CCS, BV, and DNV can be offered according to customer’s request.

Features:

1. Surface material: PVC/PET film laminated(low-flame spread) or galvanized steel sheet,
2. Core material: aluminum honeycomb
3. Fire proof rating: B-15, B-0, C
4. Width: 550/600mm
5. Thickness: 50mm, 30mm, 25mm, 20mm, 15mm
6. Customized length (max. 3600mm)
7. Certificates: CCS, BV, DNV, KR, NK, RINA, etc.

Technical specification:

Specification:

Model	B50C	B30C	B25C	B20C	B15C
Fire proof rating	B-15	B-0	B-0	C	C
Thickness	50mm	30mm	25mm	20mm	15mm
Dimension	550/600mm width× 50/30/25/20/15mm thickness ×length (max. 3600mm)
Sound reduction	33 dB(A)	30 dB(A)	29 dB(A)	27 dB(A)	25 dB(A)
Weight	17.8 kg/㎡	12.1 kg/㎡	11.4 kg/㎡	11.22 kg/㎡	11.04 kg/㎡
Thermal transmittance	2.25 kcal/㎡·h℃	3.25 kcal/㎡·h℃	3.35 kcal/㎡·h℃	3.35kcal/㎡·h℃	3.35 kcal/㎡·h℃
Tolerances	Width(-1,0), Thickness(-1,0), Length ±3,
Surface finish	PVC/PET film laminated (low flame-spread) or galvanized steel sheet
Core material	Aluminum honeycomb
