HVG DECORATIVE MATERIAL 0023

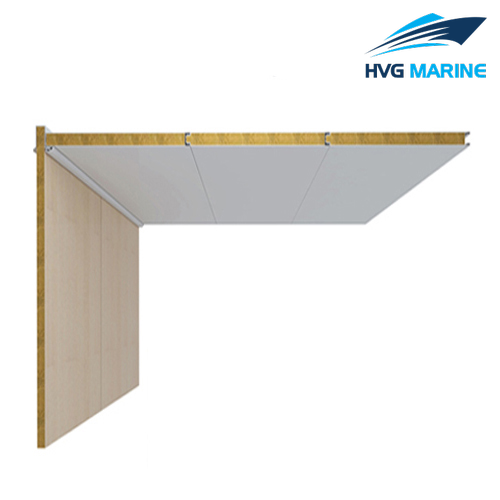

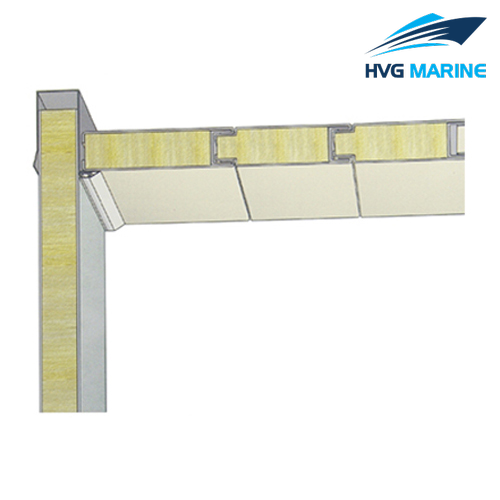

HVG DECORATIVE MATERIAL 0023: Type A Composite Rock Wool Ceiling Panel

Composite rock wool panel is a kind marine decoration material used for cabin and deck house of various ships. We can supply many types of marine composite rock wool panels; this is the type A composite rock wool ceiling board. Our products are fire resistant. The fire proof ratings are B-15 and B0. The length of our marine ceiling board is customized, so customers can choose freely. Certificates like CCS, BV, DNV, etc. could be offered according to clients’ requirement.

Features:

1. Product model: T50A, T30A, T25A, T30A(Ⅱ), TAXY
2. Fire proof rating: B-15, B-0
3. Thickness: 50mm, 30mm, 25mm
4. Normal width: 550mm
5. Length is customized, (max.3000mm)
6. Certificates: ABS, CCS, BV, DNV, KR, etc.
7. OEM service available

Technical specification:

Specification:

Model	T50A	T30A	T25A	T30A(Ⅱ)	T30AXY
Fire protecting rating	B-15	B-15/B-0	B-0	B-15	B-15
Thickness	50mm	30mm	25mm	30mm	30mm
Dimensions	50/30/25mm(t)×550mm(w)×length(max.3000mm)			30mm( t )×550mm( w )×length (max.3000mm
Weight	16.0kg/m²	13.5kg/m²	12.9kg/m²	14.7kg/m²	12.9kg/m²
Tolerances	Thickness(-1, 0), Length±3, Width(-1, 0)
Thermal transmittance	0.58Kcal/m²h°C	1.10Kcal/m²h°C	1.14Kcal/m²h°C	1.10Kcal/m²h°C	1.13Kcal/m²h°C
Core material	Rock wool 150kg/m³
Surface finish	PVC film(150μ,low flame spread) or galvanized steel sheet
