HVG DECORATIVE MATERIAL 0016: Type A Composite Rock Wool Wall Panel with Cable Slot

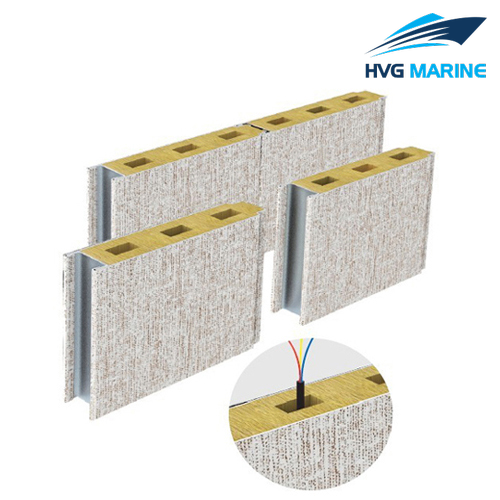

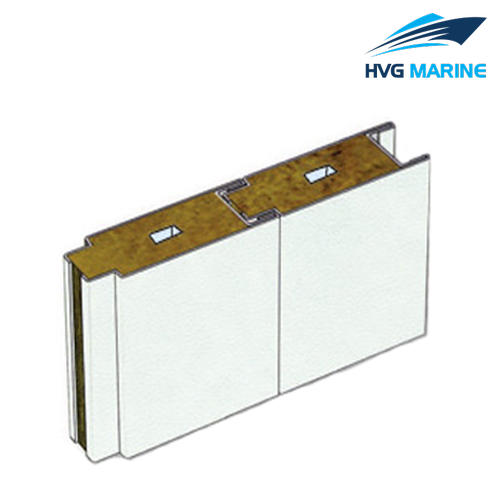

Composite rock wool panel is a sort of marine decoration materials. It is used for the decoration of wall and ceiling in the cabin and bathroom of ships. This product is the type A composite rock wool wall panel with cable slot. This type A rock wool panel for wall has one grooved end and one raised end. The structure makes it easy to be connected together and easy to install. The surface of it is smooth and it looks elegant.

Features:

1. Ship composite rock wool wall board with cable slot
2. Model: B50AD
3. Thickness: 50mm
4. Width: 550mm
5. Length is customized, (max. 3500mm)
6. Material: PVC film or galvanized steel sheet, rock wool
7. Certificates: CCS, BV, DNV, NK, RINA, etc.
8. OEM service available

Technical specification:

Specifications:

Model	B50AD
Fire protecting rating	B-15
Thickness	50mm
Width	550mm
Length	Required length (max. 3500mm)
Dimension	50mm( t )×550mm( w )×length (max.3500mm)
Tolerances	thickness(-1, 0), width(-1, 0), length±3
Weight	15.3kg/m²
Sound reduction	33dB(A)
Thermal transmittance	0.55Kcal/m²h·°C
Core material	Rock wool 150kg/m³
Surface finish	PVC film(150μ,low flame spread) or galvanized steel sheet
