HVG DECORATIVE MATERIAL 0020

HVG DECORATIVE MATERIAL 0020: Marine Type F Composite Rock Wool Ceiling

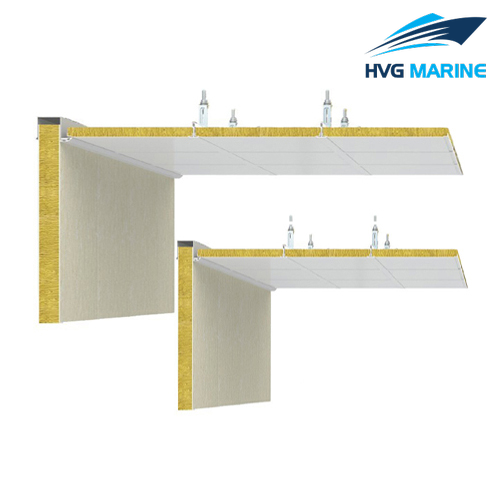

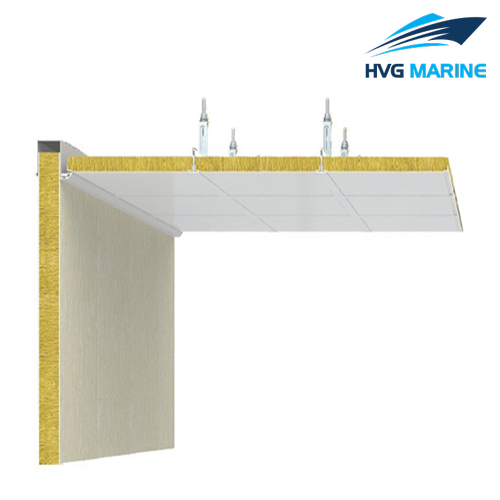

This product is the type F composite wool ceiling used in the cabin and deck house of various vessels. It is made of PVC film or galvanized steel sheet on the surface and rock wool in the core. This marine composite rock wool ceiling is fire resistant and its fire protecting rating is B-0 or B-15. It has a light weight and perfect function. It is approved by certificates CCS, BV, NK, GL, etc.

Features:

1. Marine composite rock wool ceiling board
2. Model: T25F, T50F
3. Fire resistant rating: B-0, B-15
4. Thickness: 25mm, 50mm
5. Normal width: 600mm
6. Length: 600mm
7. Certificates: CCS, BV, DNV, KR, etc.
8. OEM service available

Technical specification:

Specifications:

Model	T25F	T50F
Fire protecting rating	B-0	B-15
Weight	6.8kg/m²	8.8kg/m²
Thermal transmittance	1.36Kcal/m²h°·C	0.89Kcal/m²h°·C
Core material	Rock wool 80kg/m³
Surface finish	PVC film(150μ,low flame spread) or galvanized steel sheet
Thickness	25mm	50mm
Width	600mm
Length	600mm
Dimension	25/50mm( t )×600mm( w )×600mm(l)
Tolerances	thickness (-1, 0), width (-1, 0), length ±3
