HVG DECORATIVE MATERIAL 0022

HVG DECORATIVE MATERIAL 0022: Type D Continuous Composite Rock Wool Ceiling

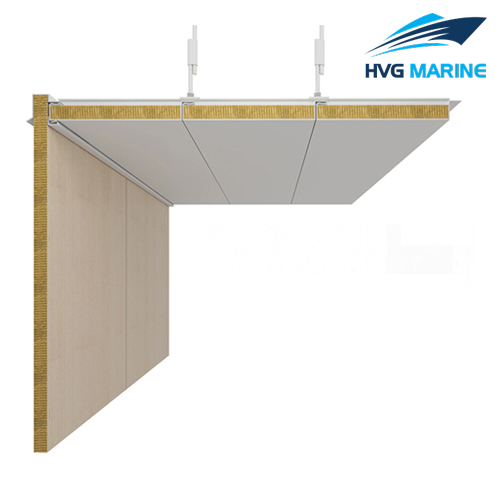

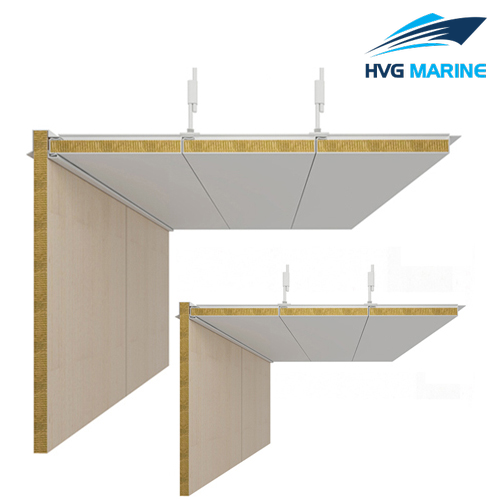

As a kind of marine decorative materials, composite rock wool panel is widely used as ceiling board of cabins and deck houses on various vessels. Our company provides many types of marine composite rock wool panels. This model is the type D continuous composite rock wool ceiling board. It is fire resistant and the fire protecting rating is B0. Our products are approved by certificates like CCS, BV, DNV, etc.

Features:

1. Product model: T25D
2. Fire proof rating: B-0
3. Thickness: 25mm
4. Width: 300mm
5. Length is customized, (max.3000mm)
6. Certificates: CCS, BV, DNV, KR, NK, etc.
7. OEM service available

Technical specification:

Specifications:

Model	T25D
Fire resistant rating	B-0
Thickness	25mm
Width	300mm
Dimension	25mm Thickness×300mm Width × Required Length(Max 3000mm)
Weight	8.5 kg/㎡
Sound reduction	30dB(A)
Thermal transmittance	1.36 Kcal/㎡h℃
Surface finish	PVC film (150μ, low flame spread)
Core material	Rock Wool 80kg/㎡
Tolerances	Width(-1,0), Height ±3, Thickness(-1,0)
