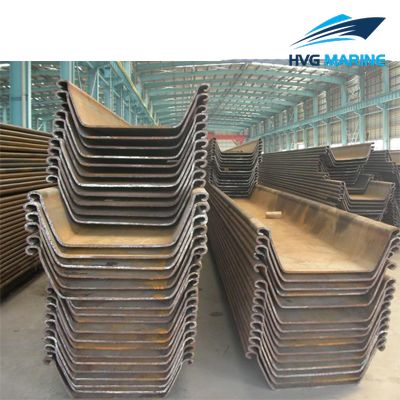

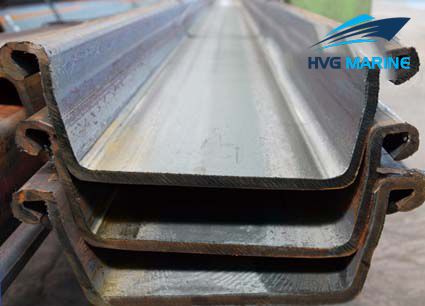

    HVG STEEL SHEET PILE 0007: 600*210mm U-shaped Steel Sheet Pile

    600*210mm U-shaped steel sheet pile plays an important role in the bridge cofferdam, large pipe laying, temporary ditch excavation to retaining soil, water and sand. The cross section structure design is reasonable, which make the ratio of setion modulus and weight increased. And the use of high tensile steel guarantee the performance of sheet pile.

    Product Details:

    • 1. Width: 600mm
    • 2. Height: 210mm
    • 3. Thickness: 10, 12, 14mm
    • 4. Material: Q235,A295,Q345,Q420
    • 5. Good waterproof performance

    Technical specification:

    • Specification:

    Type

    Width

    Height

    Thickness

    Section Area

    Weight

    mm

    mm

    mm

    cm²/m

    kg/m

    U6-1

    600

    210

    10

    109

    85.57

    U6-2

    600

    210

    12

    129.6

    101.74

    U6-3

    600

    210

    14

    152.2

    119.9
