HVG STEEL SHEET PILE 0005

HVG STEEL SHEET PILE 0005: 750*270mm Cold Formed Steel Sheet Pile

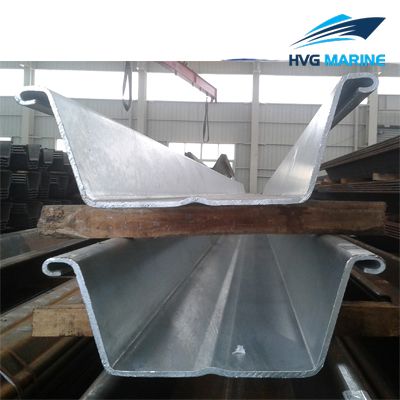

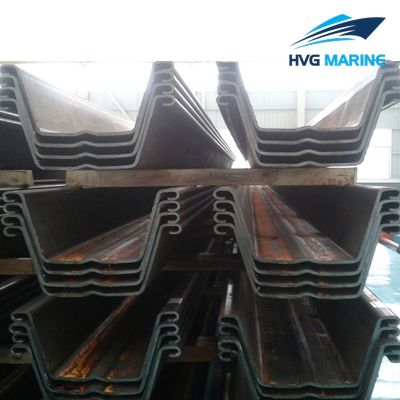

U-shaped cold formed steel sheet pile is mainly used in the temporary building structure. The steel sheet pile produce by our company can be used repeatedly because of its high durability and the excellent penetrability of cross section. We have solved the deformation and breakage problem of cold formed steel sheet pile in use, and greatly improce its service life.

Product details:

1. Thickness: 9-12mm
2. Section modulus: 3031-2302cm³
3. Weight: 165-124 kg/m
4. Cross section area: 211-258 cm²
5. High cost-effective
6. Strong bearing capacity
7. Good waterproof performance
8. Large width save the hoisting and driving time effectively
9. Special specification can be made according to customers requirements

Technical specification:

Specification:

Model	Width	Height	Thickness	Cross Section Area	Section Modulus	Weight
Model	mm	mm	mm	cm²	cm³	kg/m
U7502709	750	270	9	158.05	2302	124.07
U75027010	750	270	10	175.61	2547	137.85
U75027011	750	270	11	193.17	2790	151.64
U75027012	750	270	12	210.73	3031	165.43
