HVG STEEL SHEET PILE 0002

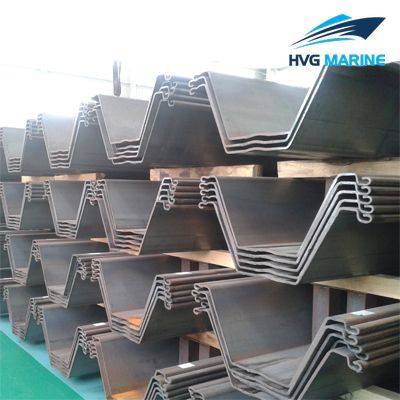

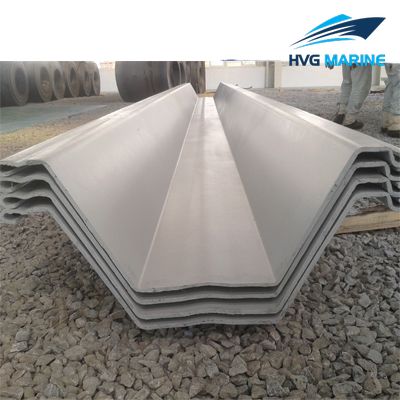

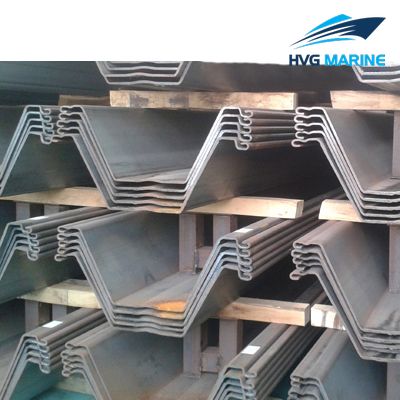

HVG STEEL SHEET PILE 0002: M Type Steel Sheet Pile

M type steel sheet pile is mainly used for permanent building structure. Considering the application property, reliability and economy of the product, we design and manufacture the M type steel sheet pile with the most reasonable cross section.If you have any requirement, please don’t hesitate to contact us.

Product Details:

1. Thickness: 9-12mm
2. Height: 308-350mm
3. Section modulus: 888-1522cm³
4. Weight: 73.5-115.9 kg/m
5. Cross section area: 93.6-147.7cm²
6. High cost-effective
7. Strong bearing capacity
8. Good waterproof performance
9. Special specification can be made according to customers requirements

Technical specification:

Specification:

Model	Width	Height	Thickness	Cross Sction Area	Section Modulus	Weight
Model	mm	mm	mm	cm²	cm³	kg/m
M9003509	900	350	9	147.66	1522	115.92
M9003498	900	349	8	131.26	1356	103.04
M9003487	900	348	7	114.84	1190	90.16
M9003108	900	310	8	124.81	1177	97.98
M9003097	900	309	7	109.21	1033	85.73
M9003086	900	308	6	93.61	888	73.49
