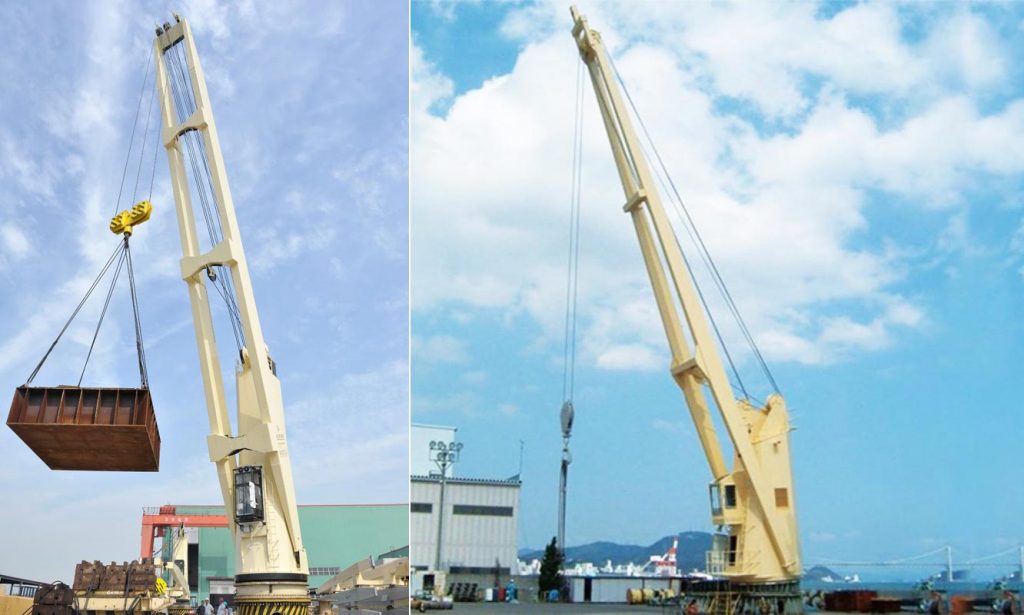

HVG SPECIAL CRANE 0002

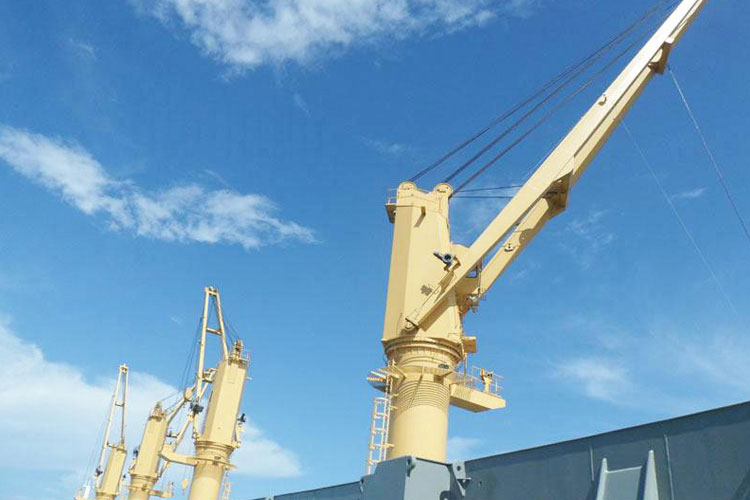

Ship-Mounted Slewing Crane

Capacity: 25-35t
Work Range: 4-30m
Lifting Height: 30-35m
Working Class: A5
Power Supply: 3-Phase A.C. 60Hz 440V
Applications: ship deck cargo handling, handling goods in some space-constrained workplaces

Description of Ship-Mounted Slewing Crane
Ship-mounted slewing crane is also called Marine crane,or Deck Crane,which is used to goods loading and unloading.The structure of this crane is compact which makes the ship deck area more available. The influence to sign of fore bridge upstair is small.The oparation is easy and highly effective, loading fast and no preparations berore work and with wide application.The main design basis is according to “China classification society CCS” Rules for Lifting Applicnces of Ship and Offshore Installations, “GB/T3811-2008” Disign Rules for Cranes.

Technical specification:

Cap.25t Main Performance Parameter List
Cap.30t Main Performance Parameter List
Cap.35t Main Performance Parameter List

Lifting Capacity		25t	Wind Speed	Working Max Wind Speed		25m/s
Work Range	Max/Min	24m/4m		Non-Working Max Wind Speed		55m/s
Lifting Height	Max	30m	Heeling Angle/ Trim Angle		5°/2°
Mechanism Working Speed	Lifting Mechanism	0-20m/min Max Falling Speed 35m/min	Ambient Temperature		-20 ～ +45℃
	Luffing Mechanism	60s	Air Humidity		0 ～ 75%
	Slewing Mechanism	0.6r/min(360°)	Atmospheric Pressure		Standard Atmospheric Pressure
	Working Class	A5	Power Supply		3-phase A.C.60Hz 440V

Lifting Capacity		30t	Wind Speed	Working Max Wind Speed		20m/s
Work Range	Max/Min	28m/4.5m		Non-Working Max Wind Speed		55m/s
Lifting Height	Max	35m	Heeling Angle/ Trim Angle		5°/2°
Mechanism Working Speed	Lifting Mechanism	0-20m/min Max Falling Speed 30m/min	Ambient Temperature		-20 ～ +45℃
	Luffing Mechanism	80s	Air Humidity		0 ～ 75%
	Slewing Mechanism	0.6r/min(360°)	Atmospheric Pressure		Standard Atmospheric Pressure
	Working Class	A5	Power Supply		3-phase A.C.60Hz 440V

Cap.35t Main Performance Parameter List
Lifting Capacity		35t	Wind Speed	Working Max Wind Speed		20m/s
Work Range	Max/Min	30m/4.5m		Non-Working Max Wind Speed		55m/s
Lifting Height	Max	35m	Heeling Angle/ Trim Angle		5°/2°
Mechanism Working Speed	Lifting Mechanism	0-14m/min Max Falling Speed 24m/min	Ambient Temperature		-20 ～ +45℃
	Luffing Mechanism	80s	Air Humidity		0 ～ 75%
	Slewing Mechanism	0.6r/min(360°)	Atmospheric Pressure		Standard Atmospheric Pressure
	Working Class	A5	Power Supply		3-phase A.C.60Hz 440V
