HVG RIGGING-LIFTING 0433

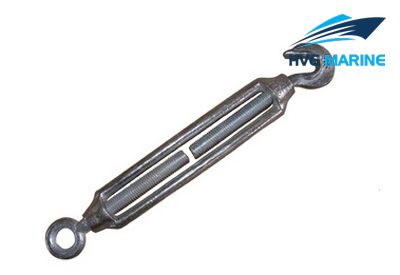

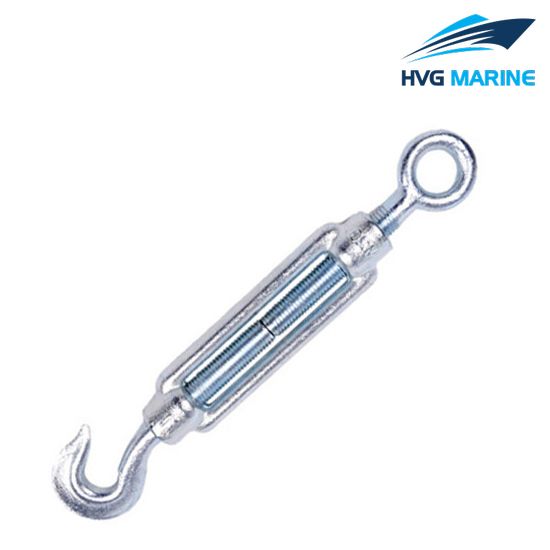

HVG RIGGING-LIFTING 0433: DIN 1480 Forged Turnbuckles with Hook and Eye

This product is made by high quality stainless steel and carbon steel with advanced international production process. And the CO type used for the occasion that one side is often been removed while the other side is not. Besides that, Special specification and marks can be made according to customers requirement

Product details:

1. Material: Steel/Carbon Steel/Stainless Steel
2. Type: Hook and Eye
3. Usage: Industrial
4. Size: M6-M30
5. Color: Hot Dipped Galvanized
6. Application: Lifting Accessories
7. Surface: Galvanized
8. Process: Forged
9. Surface: H. D. G
10. Other: Customized
11. Packing: Carton, Bag, Pallet
12. Standard: CE, ISO9001

Technical specification:

Specification：

SIZE(mm)	W.L.L.(N)	TOTAL LENGTH(mm)	BODY LENGTH(mm)	N.W.(kg/100pcs)
M6	2250	180	110	7.8
M8	4100	195	110	14.8
M10	6500	230	125	29.4
M12	9300	250	125	36.3
M16	17700	320	170	56.0
M20	27000	400	200	156.0
M22	32000	428	220	230.0
M24	39200	490	255	325.0
M30	62500	530	255	415.0
