HVG RIGGING-LIFTING 0431

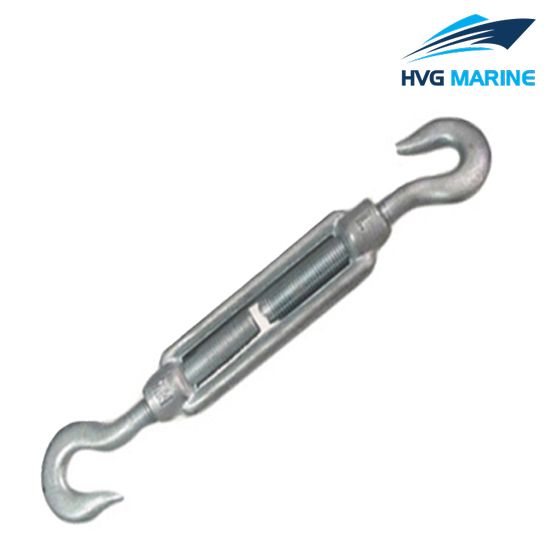

HVG RIGGING-LIFTING 0431: DIN 1480 Turnbuckle with Hook and Hook:

This product is made by high quality C15 steel with drop forged process. It can resists pitting and corrosion by most chemical, and is particular resistant to saltwater corrosion. And its hook and hook type can be used in the occasion of been removed often. So, it can be widely used in large construction site, large factory, shipping and bridge constraction because of its special performance and appearance.

product details:

1. Model NO.:DIN 1480
2. Material:C15
3. Type:Hook & Hook
4. Usage:Marine Industry
5. Installation:External
6. Condition:New
7. Surface:Electric Galvanized
8. Technology:Drop Forged
9. Size:M5-M25
10. Export Markets:Global
11. Packing:Carton with Pallet
12. Standard:ISO, CE, SGS

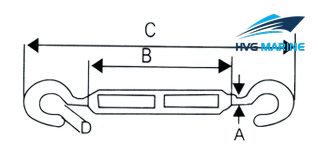

Technical specification:

Specification：

A	B	C	D	WLL	WT
(mm)	(mm)	(mm)	(mm)	(T)	(Kg)
M5	70	130	9	0.1	0.08
M6	100	160	9	0.25	0.11
M8	125	200	10	0.35	0.21
M10	150	245	11	0.5	0.34
M12	200	300	14	1	0.65
M16	250	400	18	1.5	1.3
M20	300	480	20	2.3	2.5
M10	325	520	22	3.2	3.93
M25	350	560	26	4.5	5.89
