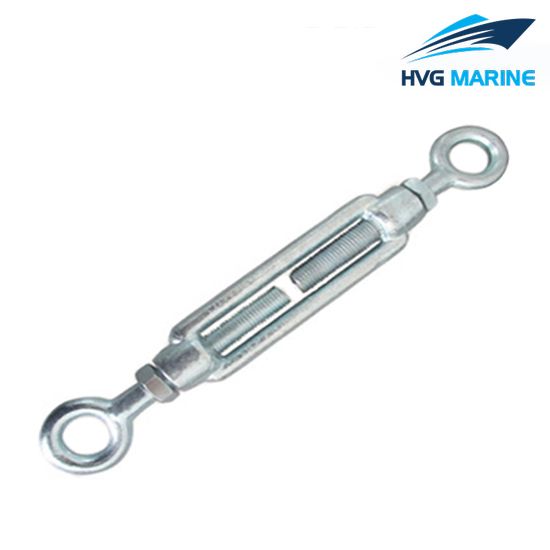

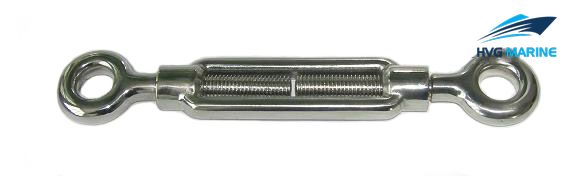

HVG RIGGING-LIFTING 0432: DIN1480 Turnbuckle with Eye & Eye

DIN1480 turnbuckles are made by high quality carbon steel with advanced international production process. The type of OO model is used in the occasion that less often been removed. And all the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products.

product details:

1. Turnbuckles Material:Carbon steel, Stainless Steel, alloy steel
2. Type: Eye and Eye
3. Surface:Zinc Plated, Galvanized
4. Model:DIN1480 Standard
5. Surface:Self colored, hot dipped galvanized, electroplating
6. Technology: Drop forged
7. Kind:with Eye and Eye
8. Size: M6-M36
9. Condition:New
10. Standard:CE, ISO, SGS,
11. Packing: Gunny bag+ iron pallet
12. Export Markets:Global

Technical specification:

Specification:

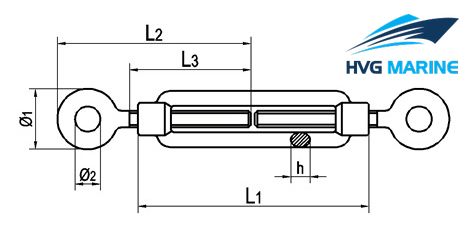

Size	L1(mm)	L2(mm)	L3(mm)	h(mm)	Φ1(mm)	Φ2(mm)
M5	70	58	35	5	15	8
M6	110	80	55	6	19	9
M8	110	84	55	8	24	11
M10	125	105	63	9	31	15
M12	125	115	68	11	35	17
M14	140	121	70	13.5	36	18
M16	170	150	85	14	48	22
M20	200	163	100	17	52	24
M22	220	185	110	19	60	27
M24	255	205	128	21	66	27
M27	255	216	128	22	71	34
M30	255	230	128	23	71	31
M33	255	253	128	25	81	39
M36	295	20	148	28	95	43
M42	330	300	170	32	113	48
