HVG RIGGING-LIFTING 0396

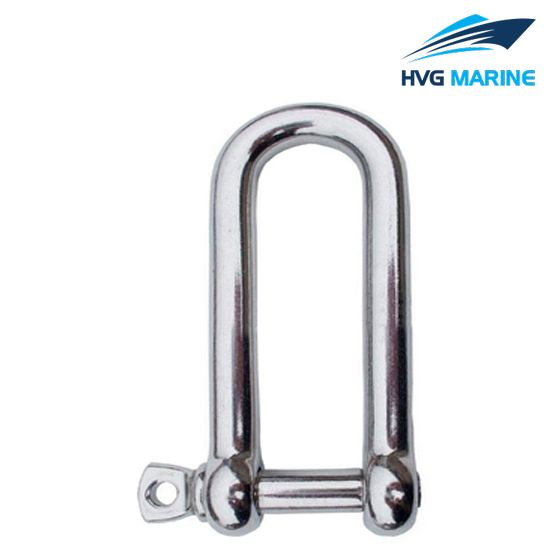

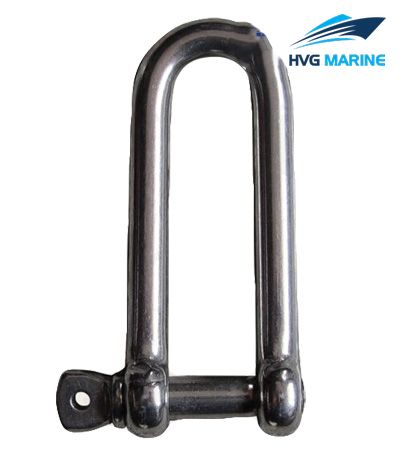

HVG RIGGING-LIFTING 0396: Long Dee Shackle

Long dee shackles are the primary connecting link in all manner of rigging systems, from boats and ships to industrial crane rigging, as they allow different rigging subsets to be connected or disconnected quickly. Our company has been speicialized in producing this product for many years. And the price is very competitive. Welcome to contact with us.

Details:

1. Model: Long Dee Shackle
2. Material: Stainless steel
3. Usage: Marine hardware, electric power, machinery
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: From 4mm to 22mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements

Technical specification:

Specification:

Size(C)	M	D	W	H	WLL
mm	mm	mm	mm	mm	kg
4	4	8	8	28	150
5	5	10	10	35	240
6	6	12	12	42	340
8	8	16	16	56	600
10	10	20	20	70	750
12	12	24	24	84	1000
14	14	28	28	98	1350
16	16	32	32	112	2000
18	18	36	36	126	2750
20	20	40	40	140	3000
22	22	44	44	154	3600
