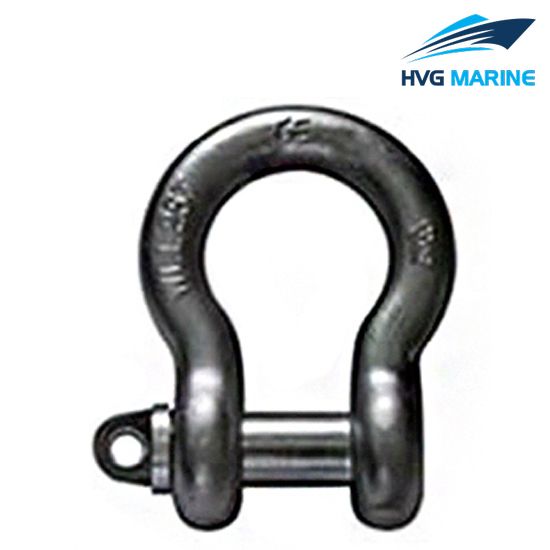

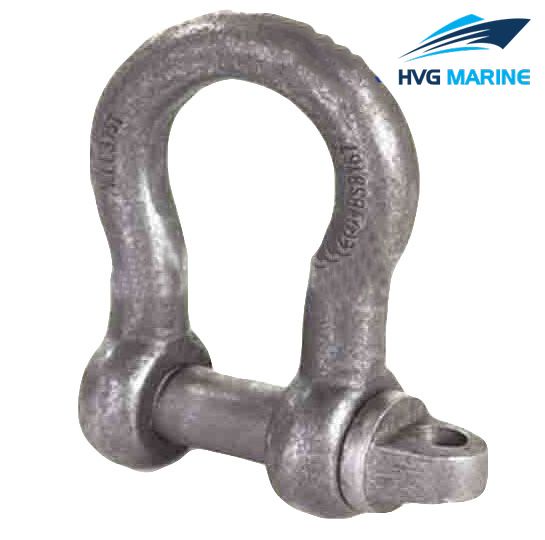

HVG RIGGING-LIFTING 0392: BS3032 Bow Shackle:

BS3032 bow shackles are very important in rigging application. Our company has long-term experience in producing this product and all sizes are available. We have our own factories and also co-operate with other excellent factories, so the price is very competitive. Please feel free to contact with us.

Details:

1. Model: BS3032 Bow Shackle
2. Material: Carbon steel, Alloy steel, Stainless steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: From 6mm to 50mm
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements

Technical specification:

Specification:

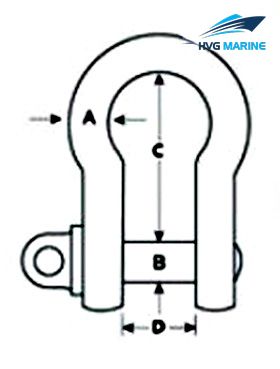

Size(A)	B	C	D	2r	SWL
in	in	mm	mm	mm	tons
1/4	3/8	29	13	19	0.15
3/8	1/2	41	16	25	0.45
1/2	5/8	54	22	32	0.75
5/8	3/4	70	28	41	1.25
3/4	7/8	86	35	51	2
7/8	1	98	41	57	2.75
1	1-1/8	108	44	64	3.75
1-1/8	1-1/4	124	51	73	4.75
1-1/4	1-3/8	137	57	83	5.75
1-3/8	1-1/2	152	63	98	8.5
1-1/2	1-3/4	168	70	121	11.5
