HVG RIGGING-LIFTING 0393

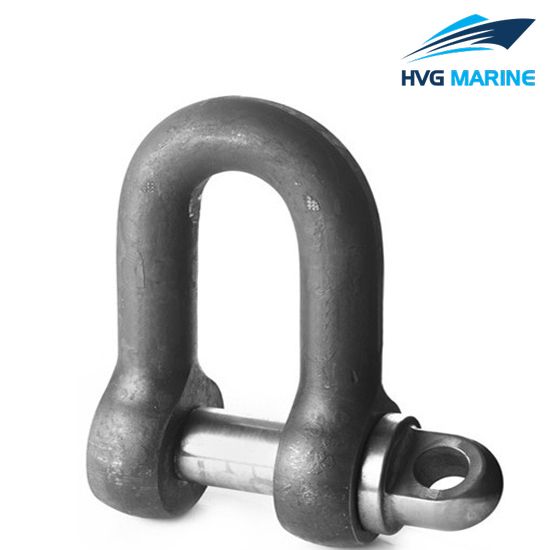

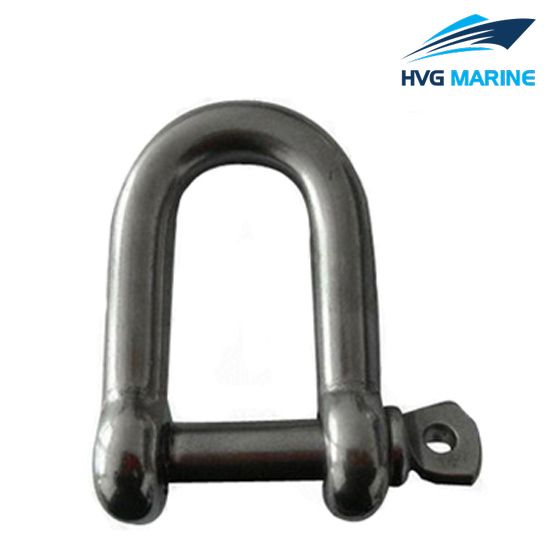

HVG RIGGING-LIFTING 0393: BS3032 Dee Shackle

BS3032 dee shackles are widely used in maring hardware. Our company has been specialized in producing this product for several years and we also co-operate with other excellent fatories, so the price is very competitive. If you are interested in our products, welcome to contact with us.

Details:

1. Model: BS3032 Dee Shackle
2. Material: Carbon steel, Alloy steel, Stainless steel
3. Usage: Marine hardware, electric power, machinery, metallurgy
4. Surface Treatment: Electric galvanized, hot dipped galvanized
5. Size: From 1/4 inch to 1-1/2 inch
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS
9. Notes: Special specifications and marks can be made according to customers requirements

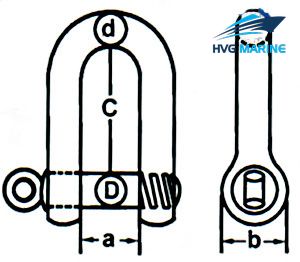

Technical specification:

Specification:

Size(A)	B	C	D	SWL
in	in	mm	mm	tons
1/4	3/8	25	13	0.25
3/8	1/2	37	20	0.5
1/2	5/8	54	28	0.75
5/8	3/4	63	32	1.5
3/4	7/8	73	38	2
7/8	1	82	44	3
1	1-1/8	95	51	3.75
1-1/8	1-1/4	104	54	5
1-1/4	1-3/8	114	60	6
1-3/8	1-1/2	127	66	7
1-1/2	1-3/4	137	70	9.5
