HVG RIGGING-LIFTING 0386

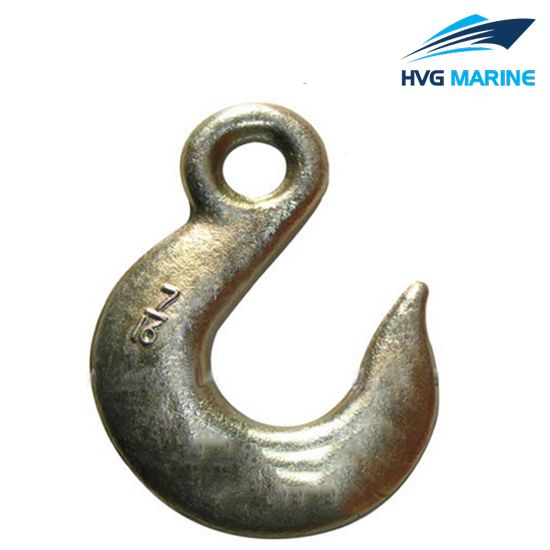

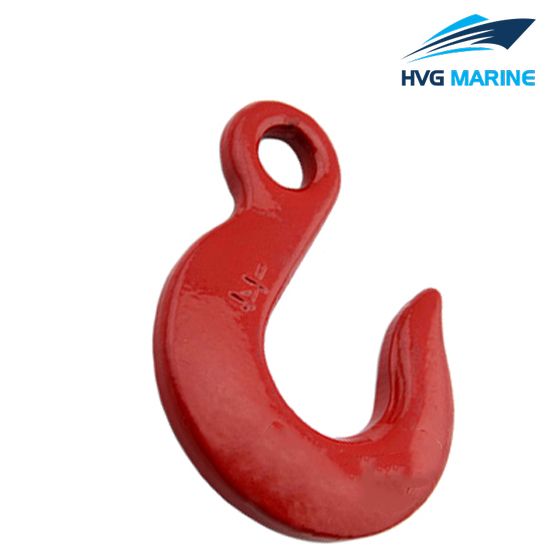

HVG RIGGING-LIFTING 0386: U.S Type Eye Slip Hook

US type eye slip hook is designed to use with G80 alloy chain and steel wire rope. It can be applied to shorten or hook long chain. It is drop forged by high quality carbon steel and alloy steel with hot dip galvanizing on the surface. The work load of it is form 2750lbs to 19250lbs. And the size of it is from1/4 inch to 3/4 inch.

Product details:

Item: US type eye slip hook
Type: US type
Grade: 80
Material: high alloy steel
Technology: drop forged
Surface: hot dip galvanized, zinc plated or self color
WLL: 2750lbs-19250lbs
Breaking load: 4 times of working load
Usage: lifting, rigging
Size: 1/4”-3/4”
Special specifications and marks can be made according to customers requirement

Technical specification:

Specification:

Size	N.W(lbs)	WLL(lbs)	Φ	R	L	M	E
1/4′	0.4	2750	12.7	65	92	68.5	23
5/16′	0.7	4300	16	72.5	106	76	26
3/8′	1	5250	18	86.5	124	89.5	33
7/16′	1.6	7000	20.5	98.5	142	108	40
1/2′	2.4	9000	23	109.5	156	116.5	43
5/8′	4	13500	28.8	132.5	195	143	52
3/4′	6.5	19250	35	147.5	222	169	55
