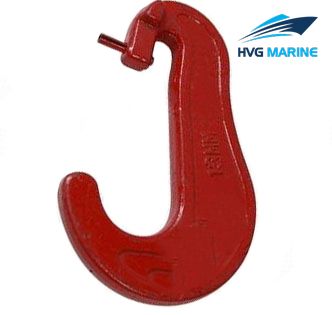

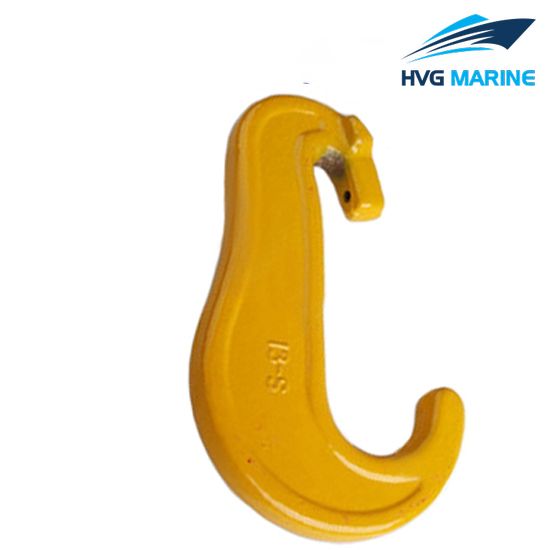

    HVG RIGGING-LIFTING 0384: G80 High Tensile Hook

    G80 high tensile hooks is made by high quality alloy steel with advanced international production process. And all the samples chosen from the finished products have past the international standard. So you can absolutely believe in the quality of products. Besides that, Special specification and marks can be made according to customers requirement.

    Product details:

    • 1. Item: G80 high tensile hook
    • 2. Type: US type
    • 3. Grade: 80
    • 4. Material: alloy steel
    • 6.Technology: drop forged
    • 7. Surface: hot dip galvanized, zinc plated or self color
    • 8. WLL: 2.5T-5.4T
    • 9. Breaking load: 4 times of working load
    • 10. Usage: lifting, rigging
    • 11. Size: 0.5kg-1.38kg
    • 12.Special specifications and marks can be made according to customers requirement

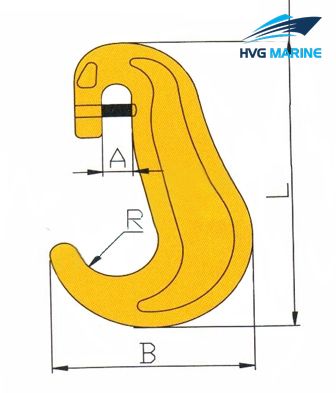

    Technical specification:

    • Specification：

    Size

    Weight/kg

    WLL/T

    B.L/T

    L

    A

    B

    R

    9

    0.5

    2.5

    10

    143

    13.5

    90.5

    18.5

    11

    0.85

    3.75

    15

    177

    15.5

    109.5

    22

    13

    1.38

    5.4

    21.6

    205

    17.7

    129

    25.5
