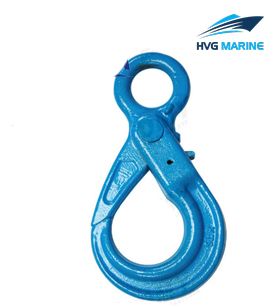

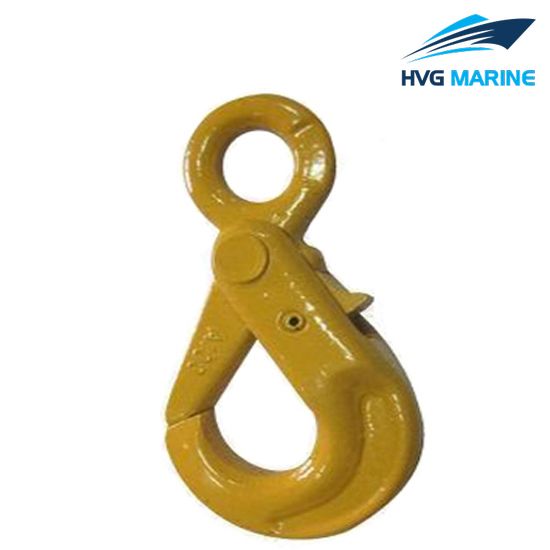

HVG RIGGING-LIFTING 0379: G80 Eye Self-locking Hook

G80 eye self-locking hook only can be opened by outside force. So it is also been called safety hooks. And eye hooks are foolproof. They can used with omega links, connecting links and other lifting components. Besides, they can serve in many circumstances. As the increasing cognition by broad new client, the use of hooks is not only confined to the ship. It has been widely applied to chemical industry, oil drilling, coal handing and other projects.

Product details:

1. Item: G80 eye self-locking hook
2. Type: European type
3. Grade: 80
4. Material: high alloy steel or carbon steel
5. Technology: drop forged
6. Surface: hot dip galvanized, zinc plated or self color
7. WLL: 1.12T-31.5T
8. Breaking load: 4 times of working load
9. Usage: lifting, rigging
10. Size: 6mm-32mm
11.Special specifications and marks can be made according to customers requirement

Technical specification:

Specification：

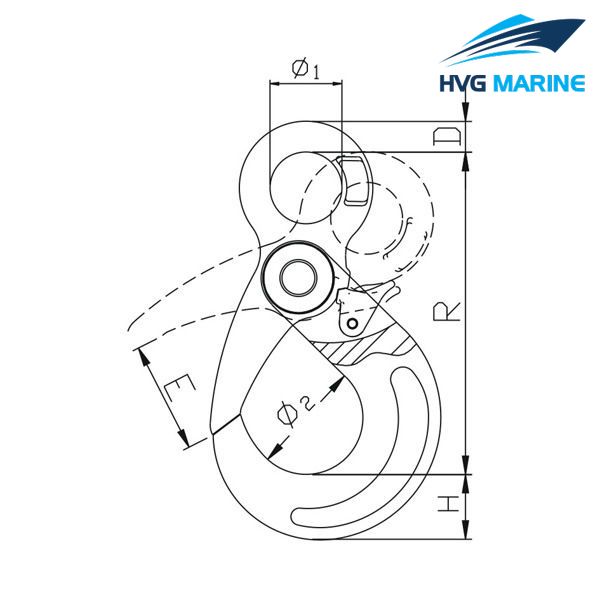

Chain Size	WLL	B.L	Weight	Φ1	Φ2	D	E	H	R
mm	ton	ton	kg	mm	mm	mm	mm	mm	mm
6	1.12	4.48	0.5	22	34	10	28	19.5	110.5
7-8	2	8	0.8	25	46	12	34	24	136
10	3.15	12.6	1.55	32	56	15	44	28.5	171
13	5.3	21.2	3.2	40.5	69	19.5	52	40	208.5
16	8	32	5.74	56	86	22	60	50.5	257.5
20	12.5	50	8.5	64.5	100	27	81	55	275
22	15	60	13	70	98	30	82	67	320
26	21.2	84.8	18	80	110	34	110	75	363
32	31.5	126	44.5	105	166	45	168	97	472
