HVG RIGGING-LIFTING 0385

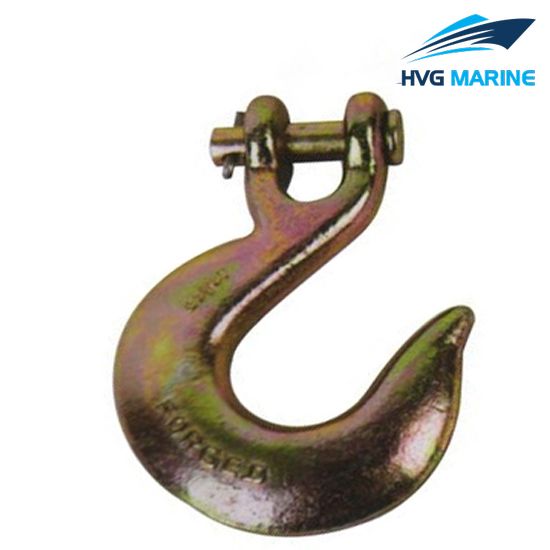

HVG RIGGING-LIFTING 0385: U.S Type Alloy Steel Clevis Slip Hook

US type alloy steel clevis slip hook is one of the most common sling in hoist machinery. Its work load is from 2750lbs to 19250lbs. As the increasing cognition by broad new client, the use of hooks is not only confined to the ship. It has been widely applied to chemical industry, oil drilling, coal handing and other projects.

Product details:

1. Item: US type alloy steel clevis slip hook
2. Type: US type
3. Grade: 80
4. Material: alloy steel
6.Technology: drop forged
7. Surface: hot dip galvanized, zinc plated or self color
8. WLL: 2750lbs-19250lbs
9. Breaking load: 4 times of working load
10. Usage: lifting, rigging
11. Size: 1/4”-3/4”
12.Special specifications and marks can be made according to customers requirement

Technical specification:

Specification：

Chain Size	WLL	Dimentions(in)				Weight
in	lbs	B	E	P	R	lbs
1/4′	2750	0.44	0.94	0.38	2.56	0.5
5/16′	4300	0.5	1.06	0.44	2.87	0.75
3/8′	5250	0.59	1.31	0.47	3.25	1.2
7/16′	7000	0.66	1.56	0.56	3.7	2.06
1/2′	9000	0.75	1.69	0.63	4	2.8
5/8′	13500	0.91	2	0.75	4.94	4.75
3/4′	19250	1.31	2.5	1	6.09	10.3
