HVG RIGGING-LIFTING 0354

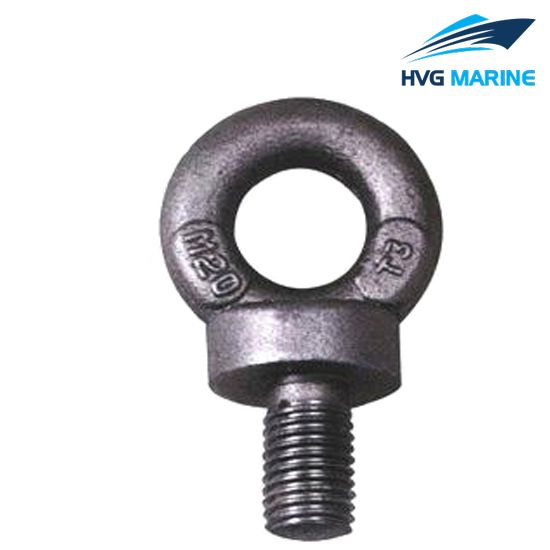

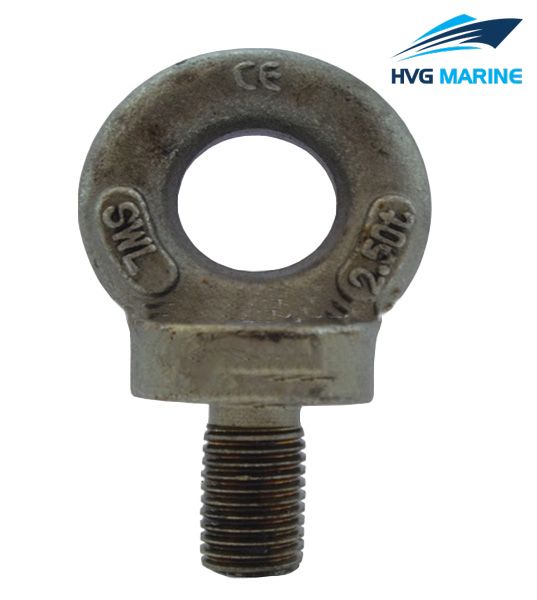

HVG RIGGING-LIFTING 0354: Eye Screw BS4278-1 Collared Eyebolt:

This model is important for marine hardware. We have produced this product for several years. All of products have high cost performance. If you are interested in this product, please do no hesitate to contact with us.

Details:

1. Model: Eye Screw BS4278-1 Collared Eyebolt
2. Material: Gray iron, ductile iron, steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized,hot dipped galvanized, zinc plated
5. Size: From M6 to M76
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

Technical specification:

Specification:

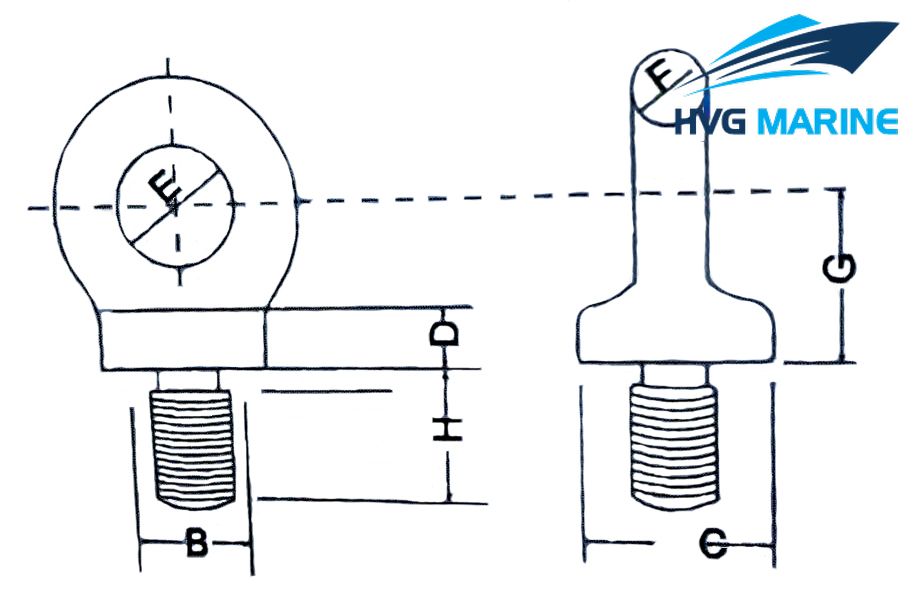

Metric Thread(mm)	SWL(vertical)	Dimensions(mm)
Metric Thread(mm)	ton	B	C	D	E	F	G	H	J	K	L
M6	0.10	22	15	7	15	9	20	18	1	3	9
M8	0.15	22	15	7	15	9	20	18	1	3	9
M10	0.25	22	15	7	15	9	20	18	1	3	9
M12	0.40	22	15	7	15	9	20	18	1	3	9
M16	0.80	29	20	10	20	12	26	23	1	3	12
M18	1.00	36	24	12	24	14	32	28	1	4	14
M20	1.60	40	27	14	27	16	36	32	1	5	16
M22	1.60	45	30	15	30	18	40	35	1	5	18
M24	2.50	52	35	17	35	21	46	40	2	6	21
M27	2.50	58	39	20	39	23	52	46	2	7	23
M30	4.00	65	44	22	44	26	58	51	2	7	26
M33	4.00	72	48	24	48	29	64	56	3	8	29
M36	6.30	81	54	27	64	32	72	63	3	9	32
M39	6.30	90	60	30	60	36	80	70	3	10	36
M45	8.00	101	68	34	68	40	90	79	3	11	40
M52	12.50	115	76	38	76	46	102	89	3	13	46
M56	16.00	128	86	43	86	51	114	100	4	14	51
M64	20.00	144	96	48	96	58	128	112	4	16	58
M70	20.00	162	108	54	108	65	144	126	4	18	65
M76	25.00	180	120	60	120	72	160	140	4	20	72
