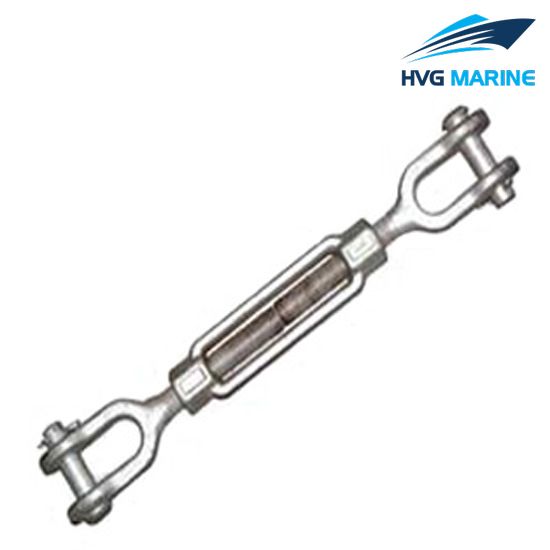

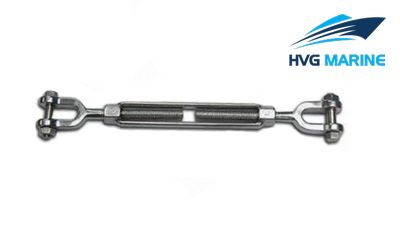

HVG RIGGING-LIFTING 0337: US Type Turnbuckle Jaw and Jaw UU

Stainless steel US type turnbuckles with jaw and jaw have the best corrision resistance among standard turnbuckles. It resists pitting and corrosion by most chemicals, and is particular resistant to saltwater corrosion. So, they can be used for a variety of application, such as boats, yachts, cable railing, and shade sails.

Product details:

1. Name: stainless steel US type turnbuckle
2. Material: stainless steel
3. Techenology: drop forged
4. Size: from1/4 to 2-3/4
5. Color:self color
6. Standard: US type
7. Usage: chain and wire rope accessoried
8. Surface: electric galvanized, hot dip galvanized
9. High grade carbon steel as material
10. Special specification and marks can be made according to customers requirement

Technical specification:

Specification:

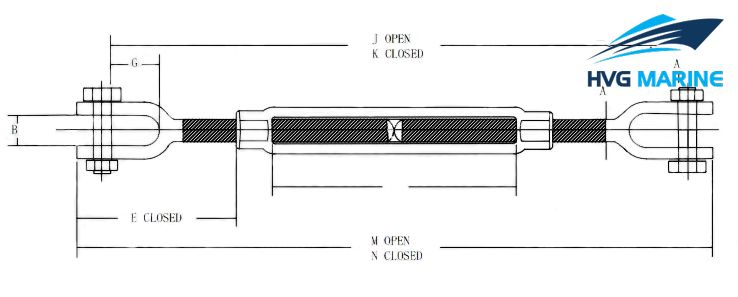

US Type Turnbuckle UU
(WLL)	A mm	B mm	C mm	D mm	E mm	L mm	WEIGH/PC
0.23	8	10	16	6	102	175	0.16
0.36	9	12	22	6	114	212	0.24
0.54	11	13	22	8	152	258	0.37
1	15	16	27	10	152	292	0.71
1	15	16	27	10	229	368	0.79
1	15	16	27	10	305	445	1.09
1.59	18	19	33	13	152	325	1.23
1.59	18	19	33	13	229	401	1.56
1.59	18	19	33	13	305	478	1.77
2.36	21	24	38	16	152	356	1.86
2.36	21	24	38	16	229	432	2.48
2.36	21	24	38	16	305	508	2.92
2.36	21	24	38	16	152	660	3.66
3.27	25	29	44	19	229	543	3.71
3.27	25	29	44	19	305	695	4.89
4.54	28	30	52	22	457	425	4.62
4.54	28	30	52	22	305	557	5.68
4.54	28	30	52	22	457	729	6.87
4.54	28	30	52	22	152	882	8.2
6.89	34	44	71	29	305	644	9.34
6.89	34	44	71	29	457	796	11.19
6.89	34	44	71	29	610	948	12.79
9.71	42	52	71	35	305	673	13.92
9.71	42	52	71	35	457	826	16.67
9.71	42	52	71	35	610	978	18.45
12.7	48	60	86	42	457	899	24.49
12.7	48	60	86	42	610	1051	28.74
16.78	55	64	94	51	610	1157	42.75
27.22	68	73	113	58	610	1244	74.84
34.02	75	89	106	71	610	1289	89.81
