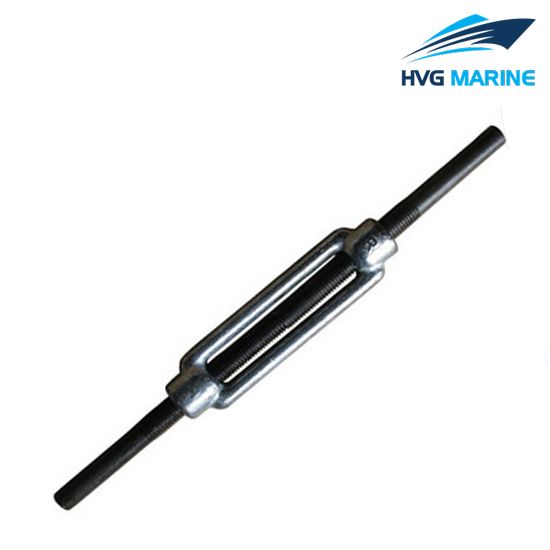

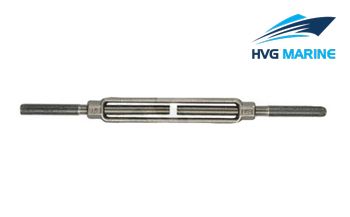

    HVG RIGGING-LIFTING 0324: Rigging Fastener Turnbuckle with Stub End

    Rigging fastener turnbuckle with stub end can be made into a lot of types, such as US types, JIS types, commercil type and so on, according to customers requiment. Because of the characteristics of it, it can be widely used in large construction site, large factory, shipping and bridge constraction.

    Product details:

    • 1. Item: Rigging fastener turnbuckle with stub end
    • 2. Standard: US type, commercial type, JIS type
    • 3. Material: carbon steel, stainless steel, alloy steel
    • 4. Type: stub end
    • 5. Technology: drop forged
    • 6. Surface: hot dipped galv, electro galv
    • 7. Size: 1/4”*4”—2 3/4”*24”
    • 8. Usage: chain and wire rope accessories
    • 9. Special specification and marks can be made according to customers requirement

    Technical specification:

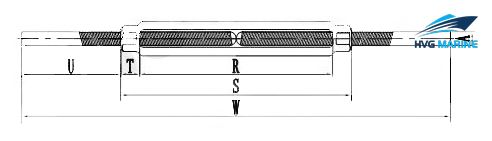

    • Specification:

    W.L.L.

    WT

    Body length

    Stub end length

    lbs

    lbs

    in

    in

    1200

    0.75

    7.13

    4.44

    2200

    1.25

    7.5

    4.25

    3500

    2.11

    7.88

    4.06
