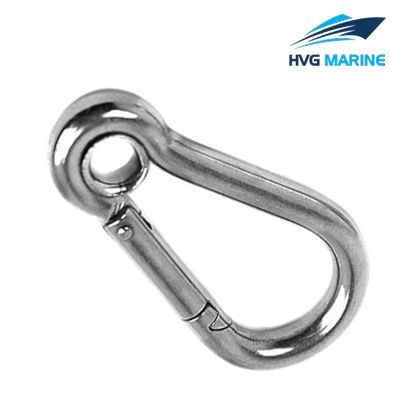

    HVG RIGGING-LIFTING 0323: Stainless Steel Snap Hook with Eyelet

    Stainless steel snap hook with eyelet is made by high quality 304 stainless steel with polishing on the surface. It is indispensable to lifting equipment. Snap hook plays an important role in improving the operational efficiency of hoisting equipment and expanding the scope of work of crane. Especially in the process of using stainless steel wire rope, if the length of it is not enough, we can use snap hooks to cannect.

    Product details:

    • 1. Item: Stainless steel snap hook with eyelet
    • 2. Material: high polished stainless steel
    • 3. Technology: drop forged
    • 4. Surface: polished, zinc plated
    • 5. Size: 4mm-14mm
    • 6. Usage: lifting industry
    • 7. Breaking load: 4 times of working load
    • 8. Special specifications and marks can be made according to customers requirement

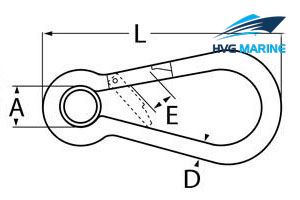

    Technical specification:

    • Specification:

    Size(D)

    A

    E

    L

    mm

    mm

    mm

    mm

    4

    5

    6

    40

    5

    6.5

    7

    50

    6

    7.5

    8

    60

    7

    9

    8

    70

    8

    10

    9

    80

    9

    11

    10

    90

    10

    13

    12

    100

    11

    15

    16

    120

    12

    18

    19

    140

    13

    20

    25

    160

    14

    20

    35

    180
