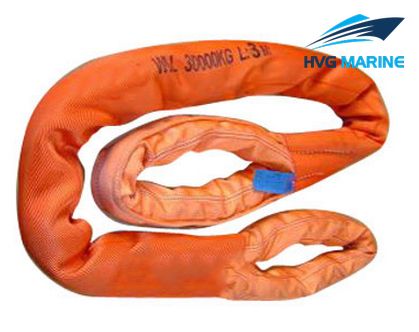

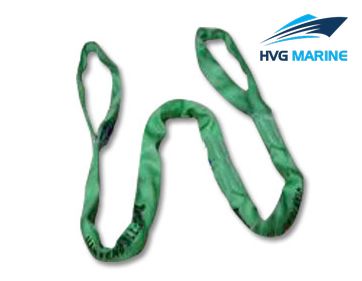

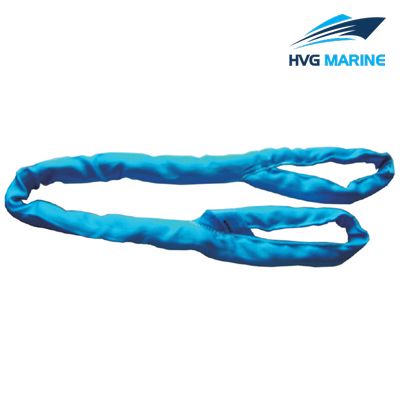

Eye Type Round Sling:

Eye and eye round sling is soft in texture and with multiple suspension points. Both ends of the sling are fitted with fixed lifting bushing. The sling body is thick and its surface is wear resistant. Our company has produced it for many years and we also co-operate with other excellent factories. All sizes are available and the price is very competitive. Welcome to contact with us.

Details:

1. Model: Eye Type Round Sling
2. Material: Polyester
3. Usage: Lifting
4. Colors: Various color
5. Length: To be customized
6. Packing: Packaged with bags, standard export carton or by customer requirments
7. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certifications: CE, ABS, CCS, ISO, NK, TUV,etc.
9. Notes: Special specification and marks can be made according to customers requirements

Technical specification:

Specification:

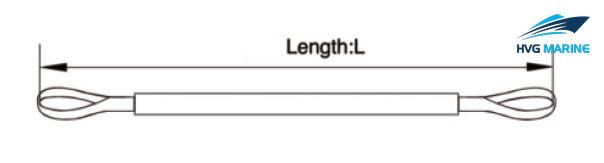

Working Load Limited	Approx thickness	Approx width	L		Weight(6:1)
Working Load Limited	Approx thickness	Approx width	Minimum length	Maximum length	Weight(6:1)
kg	mm	mm	m	m	kg/m
1000	11	50	1.0	To be customized	0.29
2000	12	60	1.5		0.41
3000	14	70	1.5		0.63
4000	15	80	1.5		0.80
5000	23	90	1.5		0.96
6000	25	90	2.0		1.12
8000	26	100	3.0		1.45
10000	27	110	3.0		1.90
12000	28	125	3.0		2.36
15000	29	150	3.0		2.86
20000	31	180	3.0		4.50
25000	34	200	3.0		5.70
30000	36	220	4.0		7.90
40000	40	250	4.0		10.60
50000	46	300	4.0		12.50
