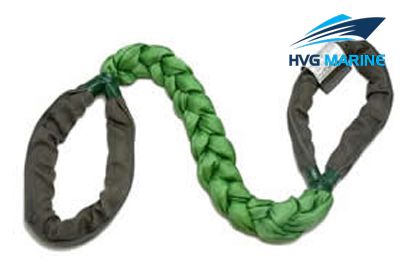

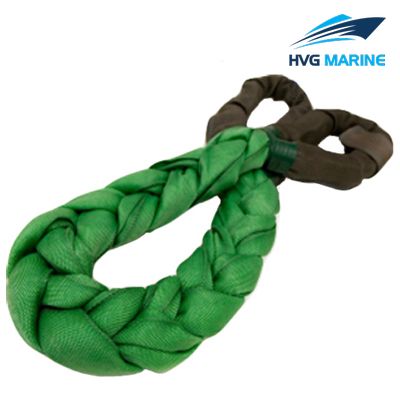

Braided Type Round Sling:

Braided type round sling can improve the compositive capacity, also be used dividually. It is also featured by lightweight, long service lifetime, shock absorption, non-conducting and non-corroding. All sizes are available and the price is very competitive. If you are interested in this product, welcome to contact with us.

Details:

1. Model: Braided Type Round Sling
2. Material: Polyester
3. Usage: Lifting
4. Colors: Various color
5. Length: To be customized
6. Packing: Packaged with bags, standard export carton or by customer requirments
7. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certifications: CE, ABS, CCS, ISO, NK, TUV,etc.
9. Notes: Special specification and marks can be made according to customers requirements

Technical specification:

Specification:

Working load limited	Minimum length	Eye length	Approx width	Approx thickness	Eye diameter	Weight(6:1)
kg	m	mm	mm	mm	mm	kg/m
3000	1.5	380	82	20	40	1.24
6000	1.5	380	96	28	44	1.86
9000	1.8	460	108	32	51	2.83
12000	1.8	460	114	36	57	3.35
15000	2.2	640	133	44	64	4.46
18000	2.4	640	139	51	70	5.22
24000	2.7	760	168	57	88	7.28
30000	3.0	840	198	62	98	9.22
36000	3.2	960	230	68	108	11.24
