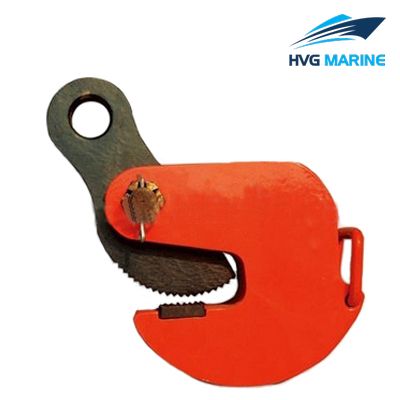

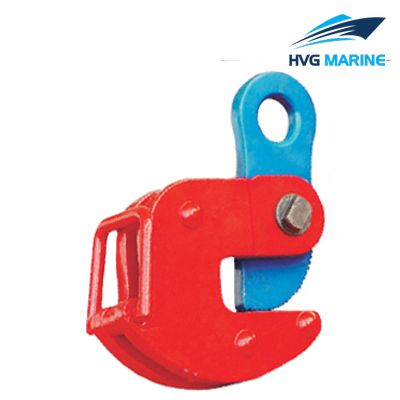

    HVG RIGGING-LIFTING 0246: Overturn Clamp

    1. Using for lifting steel plates level and steel plate or steel for overturn
    2. Lifted objects can not be collided in the process of operation
    3. The maximum weight of single overturn clamp is working load limit, the lifting operation can use single one
    4. You must add balance beam when lifting in horizontal
    5. The proof load is 2 times the weight of the working load limit, the breaking load is 4 times the weight of working load limit
    6. Pakaged with bags, standard export carton or by customer requirements
    7. Quality assurance, experienced staffs, professional service, competitive price, etc.
    8. Certification: CCS, CE, ABS, NK, DNV, ISO, etc.

    Technical specification:

    • Technical specification
    WLL/pair Steel Plate A B C D E F Weight
    t mm mm mm mm mm mm mm kg
    1.5 0-20 80 43 153 30 80 205 5.2
    2.5 0-30 105 52 190 35 90 270 8.7
    5 10-40 136 82 247 46 114 380 25
    10 20-50 160 85 300 60 129 410 35
