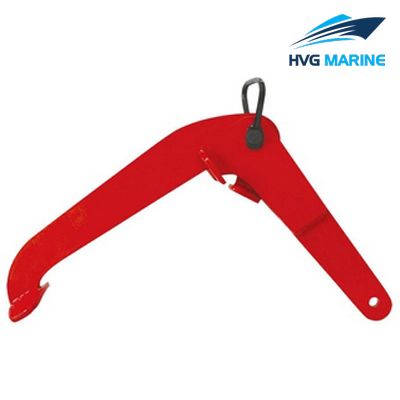

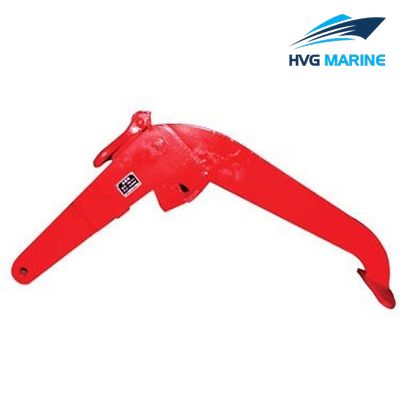

    HVG RIGGING-LIFTING 0246: YQC Oil Drum Clamp

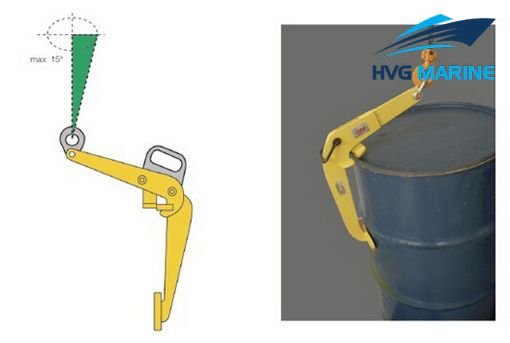

    1. Using for lifting jerricans vertically
    2. The maximum weight of single oil drum clamp is the working load limit, the lifting operation can use single or in group
    3. The lifted objects can not be collided in operation process
    4. The proof load is 1.5 times the weight of the working load limit, the breaking load is 3 times the weight of the working load limit
    5. Please read the product specification carefully before using it
    6. Pakaged with bags, standard export carton or by customer requirements
    7. Quality assurance, experienced staffs, professional service, competitive price, etc.
    8. Certification: CCS, CE, ABS, NK, DNV, ISO, etc.

    Technical specification:

    • Technical specification
    WLL/pair Opening H h M S W Weight
    t mm mm mm mm mm mm kg
    0.6 0-30 350 420 570 105 260 6.5
