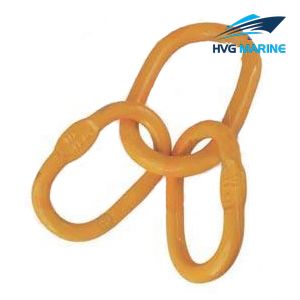

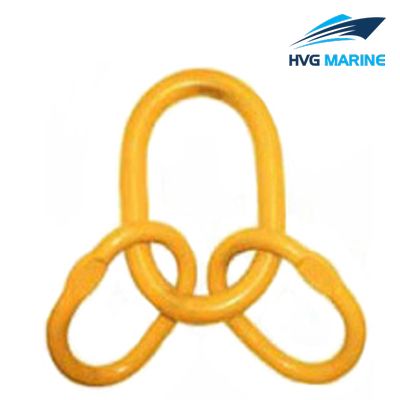

HVG RIGGING-LIFTING 0188: A347 Welded Master Link Assembly

A347 welded master link assembly are consisted by a main ring with two or more subrings. It is mainly used for assembly lifting riggings. The subring connect with connecting link and chain, and all of them assemble into composite rigging to lift heavy objects and equipments. It can be widely used in machinery, metallurgy, electric power, railway, port, wharf, chemical industry and so on.

Product Details:

1. Item: A347 welded master link assembly
2. Grade: G80
3. Material: Forged alloy steel
4. Technology: Drop forged
5. Surface: Hot dip galvanized, Color painted
6. WLL: 2.4T-40T
7. Braking load is 4 times of working load limited
8. Usage: Lifting accessories
9. Size: 14mm-51mm
10. Special specifications and marks can be made according to customers requirement

Technical specification:

Specification:

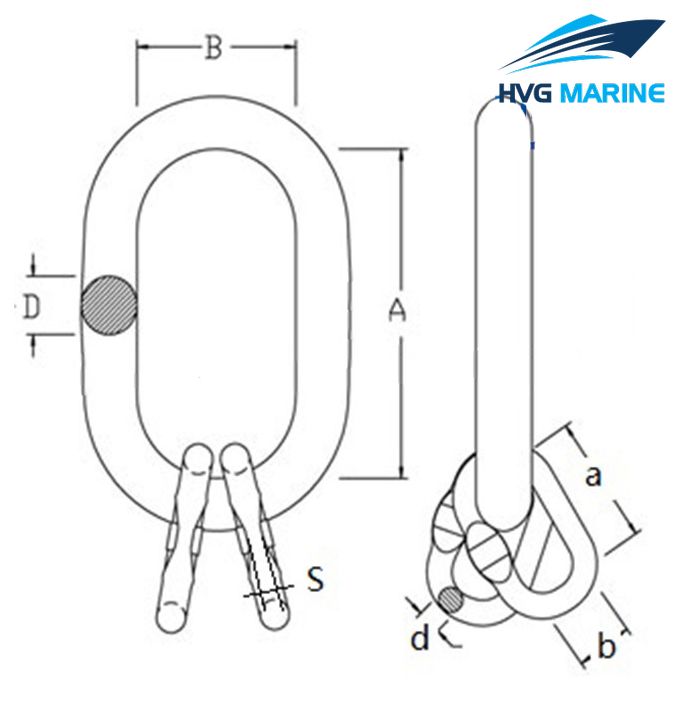

WLL(T)	Weight(kg)	B.L(T)	A(mm)	B(mm)	D(mm)	a(mm)	b(mm)	d(mm)
2.4	0.82	9.6	100	60	14	85	40	12
3.2	1.6	12.8	160	90	18	100	60	14
3.2	1.61	12.8	160	90	18	100	60	14
5	1.95	20	160	90	20	100	60	14
8	3.16	32	180	100	22	150	70	18
12	6.75	48	270	140	28	160	90	22
17.4	9.31	69.6	270	140	32	180	100	25
21	18.4	84	300	160	40	270	140	31
30	26.4	120	340	180	45	285	155	36
40	42.91	160	350	190	51	340	180	45
