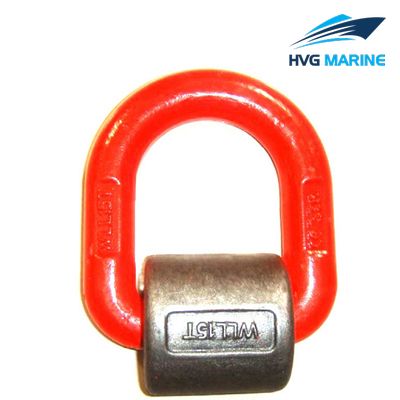

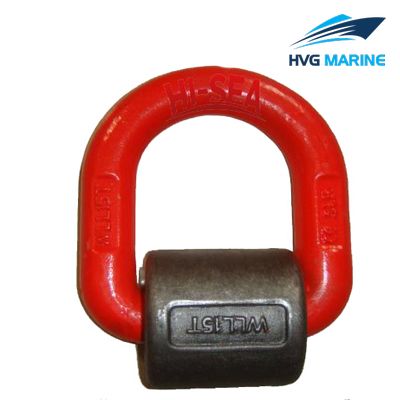

HVG RIGGING-LIFTING 0187: G80 Forged D Ring with Spring

G80 forged D ring with spring is made by high quality forged alloy steel. And the innovation design endows it many advantages-rated load increased by 50%. The raised parts in the two sides of ring improve the connection performance. And its supporting effect is perfect, especially when the force of ring on both sides is different or when it is welded on the uneven surface.

Product Details:

1. Item: G80 forged D ring with spring
2. Grade: G80
3. Material: Forged alloy steel
4. Technology: Drop forged
5. Surface: Hot dip galvanized, Color painted
6. WLL: 1.12T-15T
7. Braking load is 4 times of working load limited
8. Usage: Lifting accessories
9. Size: 13mm-34mm
10. Special specifications and marks can be made according to customers requirement

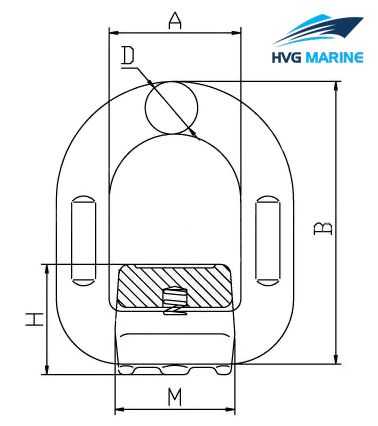

Technical specification:

Specification:

WLL(T)	Weight(kg)	B.L(T)	A(mm)	B(mm)	D(mm)	M(mm)
1.12	0.4	4.48	41	78.5	13	37
2	0.47	8	42	88	14	40
3.15	0.69	12.8	45	94	17	42.5
5.3	1.46	21.2	55	118	22	50
8	2.5	32	70	141	26.5	66.5
15	5.79	60	97	188	34	90
