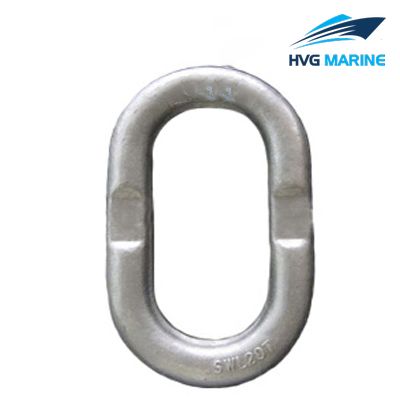

    HVG RIGGING-LIFTING 0185: EVM Series Germany Type Forged Master Link

    EVM series germany type forged master link is designed to facilitate direct connection to wire rope without any intermediate coupling-link. They can be used with omega link, connecting link, and other clevis and eye type lifting components. And they can serve in many circumstances.

    Product Details:

    • 1. Item: EVM series Gernmany type forged master link
    • 2. Type: Germany type
    • 3. Grade: G80
    • 4. Material: Alloy steel or carbon steel
    • 5. Technology: Drop forged
    • 6. Surface: Color painted
    • 7. WLL: 10T-20T
    • 8. Usage: Lifting accessories
    • 9. Size: 21.5mm-34mm
    • 10. Special specifications and marks can be made according to customers requirement

    Technical specification:

    • Specification:

    WLL(T)

    Weight(kg)

    B.L(T)

    A(mm)

    B(mm)

    D(mm)

    10

    0.82

    50

    101

    37.5

    21.5

    12

    1.7

    60

    122

    48

    25

    15

    2.8

    75

    170

    75

    30

    20

    4.2

    100

    185

    85

    34
